TMC2130-LAW - Analog Devices

Description: Silent stepper motor driver 5 to 46V, up to 1.2A with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard and StealthChop

Download TMC2130-LAW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

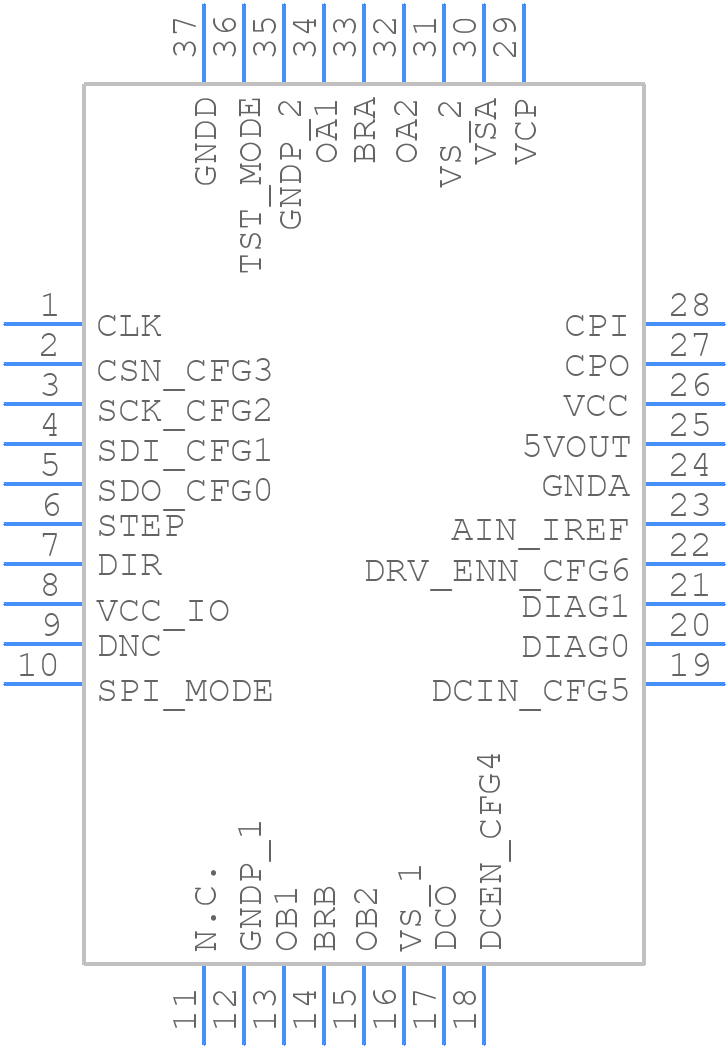

TMC2130-LAW - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC2130-LAW - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 36-LFCSP-5X6X0.9_2024
click to zoom
3D Models
TMC2130-LAW - Analog Devices - 3D model - Quad Flat No-Lead - 36-LFCSP-5X6X0.9_2024
click to zoom

TMC2130-LAW Details

  • Manufacturer Part Number:

    TMC2130-LAW

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMC2130-LAW Overview

Use the download button to access the TMC2130-LAW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMC21, or try a keyword search, such as Motion Control Electronics
