TMC2160A-TA-T - Analog Devices

Description: Stepper motor driver 8 to 60V, for external N-Fets with S/D and SPI Interface, 256 µSteps, CoolStep, StallGuard2, SpreadCycle and StealthChop2

Download TMC2160A-TA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

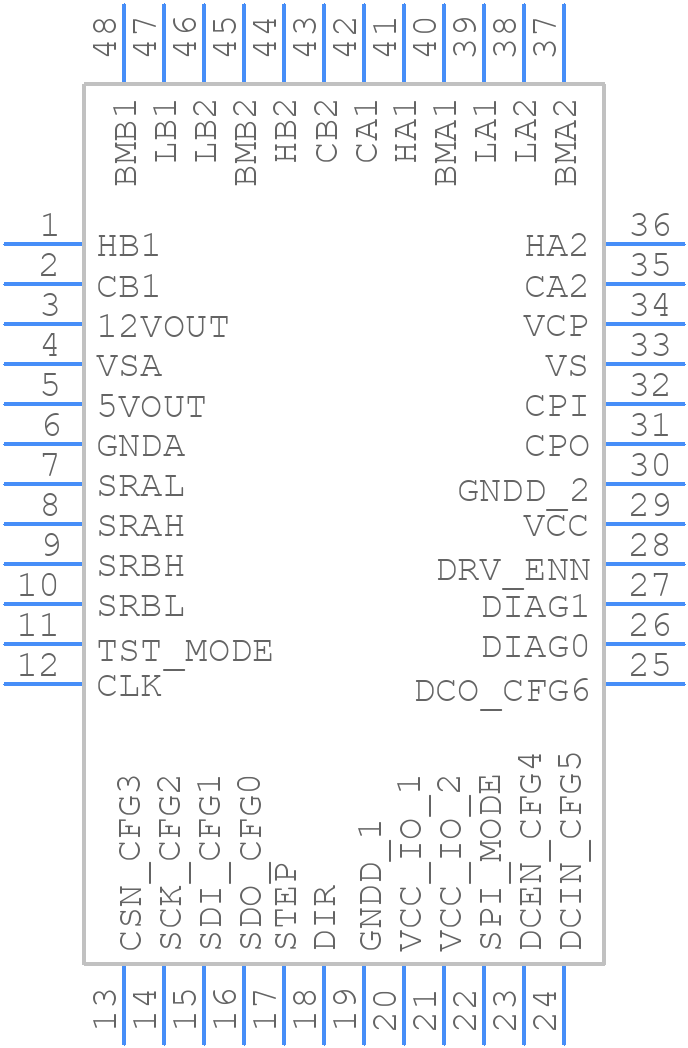

TMC2160A-TA-T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC2160A-TA-T - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - Dimensional drawings TQFP48-EP
click to zoom
3D Models
TMC2160A-TA-T - Analog Devices - 3D model - Quad Flat Packages - Dimensional drawings TQFP48-EP
click to zoom

TMC2160A-TA-T Details

  • Manufacturer Part Number:

    TMC2160A-TA-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

TMC2160A-TA-T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the device away from other heat sources and using a heat sink can help improve thermal performance.
  • To configure the TMC2160A-TA-T for silent operation, set the StallGuard2 threshold to a low value, and adjust the chopper offset and hysteresis to minimize noise. Additionally, using a low current sense resistor and optimizing the motor tuning parameters can also help reduce noise.
  • The maximum motor current that can be driven by the TMC2160A-TA-T is 2.8A peak, but this can be limited by the thermal performance of the device and the PCB layout. It's recommended to derate the current based on the ambient temperature and the device's thermal performance.
  • To troubleshoot issues with the StallGuard2 feature, check the StallGuard2 threshold setting, and ensure that the current sense resistor is properly connected and calibrated. Also, verify that the motor is properly connected and that the driver is configured correctly. If issues persist, try adjusting the StallGuard2 threshold or consulting the application note for more troubleshooting tips.
  • Yes, the TMC2160A-TA-T can be used with stepper motors that have different winding configurations, but the driver may need to be reconfigured to match the motor's winding configuration. Consult the datasheet and application notes for more information on how to configure the driver for different motor types.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMC2160A-TA-T Overview

Use the download button to access the TMC2160A-TA-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMC21, or try a keyword search, such as Motion Control Electronics

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
