TMC2226-SA-T - Analog Devices

Description: Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop2

Download TMC2226-SA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

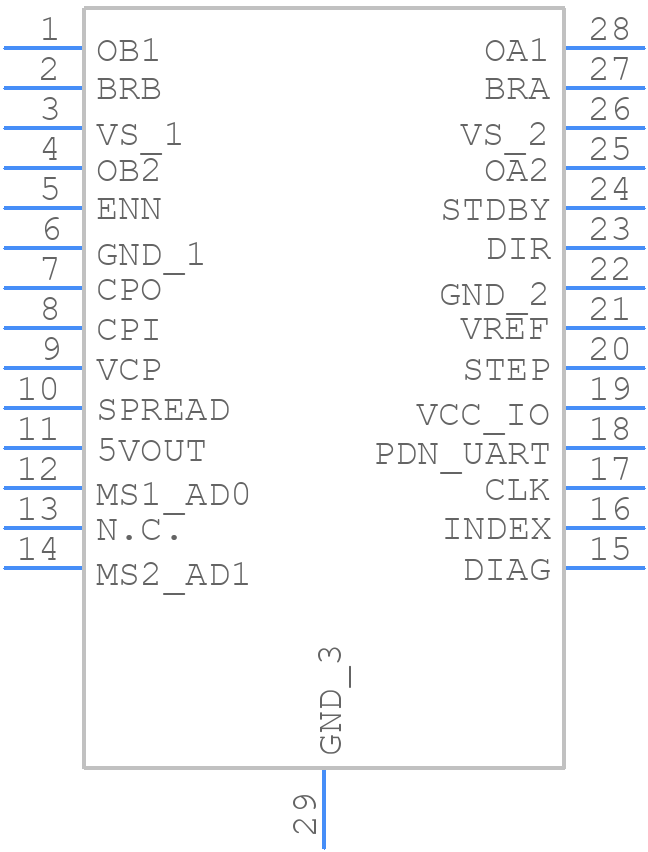

TMC2226-SA-T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC2226-SA-T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP28
click to zoom
3D Models
TMC2226-SA-T - Analog Devices - 3D model - Small Outline Packages - HTSSOP28
click to zoom

TMC2226-SA-T Details

  • Manufacturer Part Number:

    TMC2226-SA-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HTSSOP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    29 V

  • Supply Voltage-Min (Vsup):

    4.7 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

TMC2226-SA-T Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the TMC2226-SA-T near the edge of the board, using a large copper area for heat dissipation, and minimizing the number of layers under the device. Additionally, using thermal vias and a thermal pad can help to dissipate heat more efficiently.
  • To configure the TMC2226-SA-T for silent operation, you can use the StealthChop feature, which reduces the noise level of the motor by spreading the current spectrum. This can be done by setting the CHOPCONF register to the StealthChop mode and adjusting the chopping frequency and amplitude to optimize for silent operation.
  • The TMC2226-SA-T can handle a maximum motor current of 2.8A peak and 1.4A RMS. However, the actual current handling capability may be limited by the PCB layout, thermal design, and other system-level factors.
  • The TMC2226-SA-T has a built-in stall detection feature that can be enabled by setting the STALLCONF register. The device can detect stalls based on the motor current and velocity. When a stall is detected, the device can be configured to reduce the motor current or shut down the motor to prevent damage.
  • The recommended power supply decoupling for the TMC2226-SA-T involves using a combination of ceramic and electrolytic capacitors to filter out noise and ripple on the power supply lines. A minimum of 10uF ceramic capacitor and 100uF electrolytic capacitor are recommended, with the capacitors placed as close as possible to the device.
