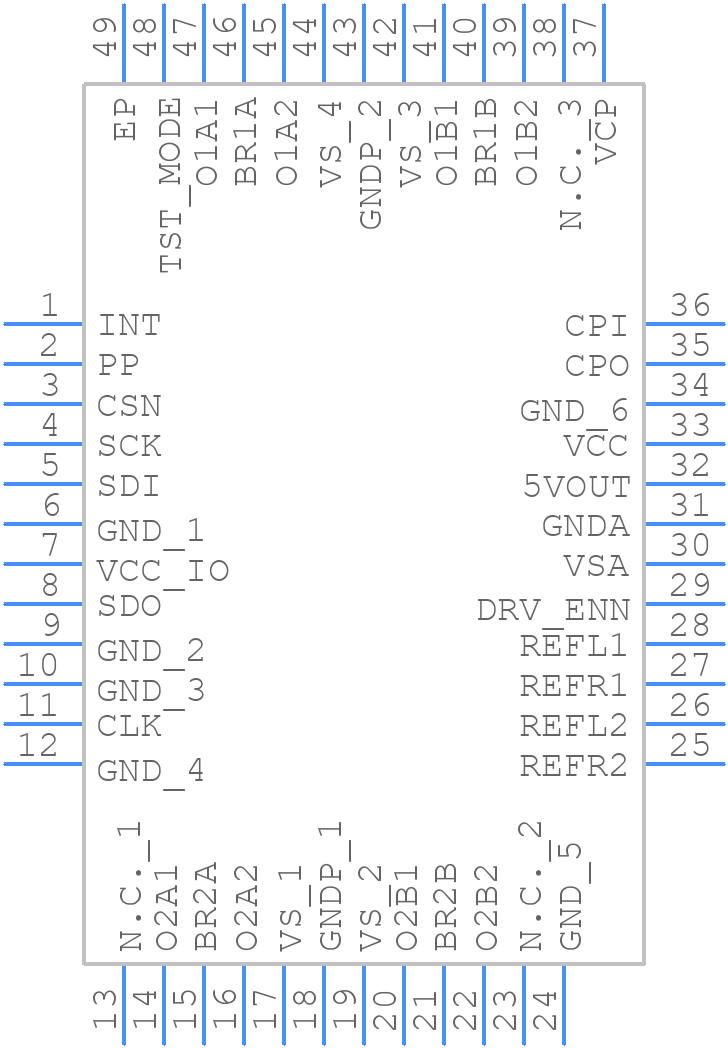

TMC5041-LA-T - Analog Devices

TMC5041-LA-T Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the TMC5041-LA-T to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 100nF) close to the device's power pins.
• How do I properly configure the TMC5041-LA-T's SPI interface for reliable communication?
  Use a clock frequency between 100 kHz and 2 MHz. Ensure the master device (e.g., microcontroller) is configured as the SPI master, and the TMC5041-LA-T is set as the slave. Use a pull-up resistor (e.g., 1 kΩ) on the CS pin to prevent floating.
• What is the recommended power-up sequence for the TMC5041-LA-T to prevent damage or malfunction?
  Apply power to the device in the following order: 1) VDD, 2) AVDD, and 3) DVDD. Ensure all power supplies are stable before configuring the device. Avoid applying signals to the device before the power supplies are stable.
• How do I optimize the TMC5041-LA-T's performance for my specific motor control application?
  Consult the device's application note (AN-1391) for motor-specific configuration guidelines. Adjust the device's parameters (e.g., current sense gain, overcurrent protection) based on the motor's characteristics and the system's requirements.
• What are the thermal considerations for the TMC5041-LA-T, and how can I ensure reliable operation in high-temperature environments?
  The device's junction temperature (TJ) should not exceed 150°C. Ensure good thermal conductivity between the device and the PCB. Use thermal vias or a heat sink if necessary. Monitor the device's temperature and adjust the system's thermal design accordingly.
