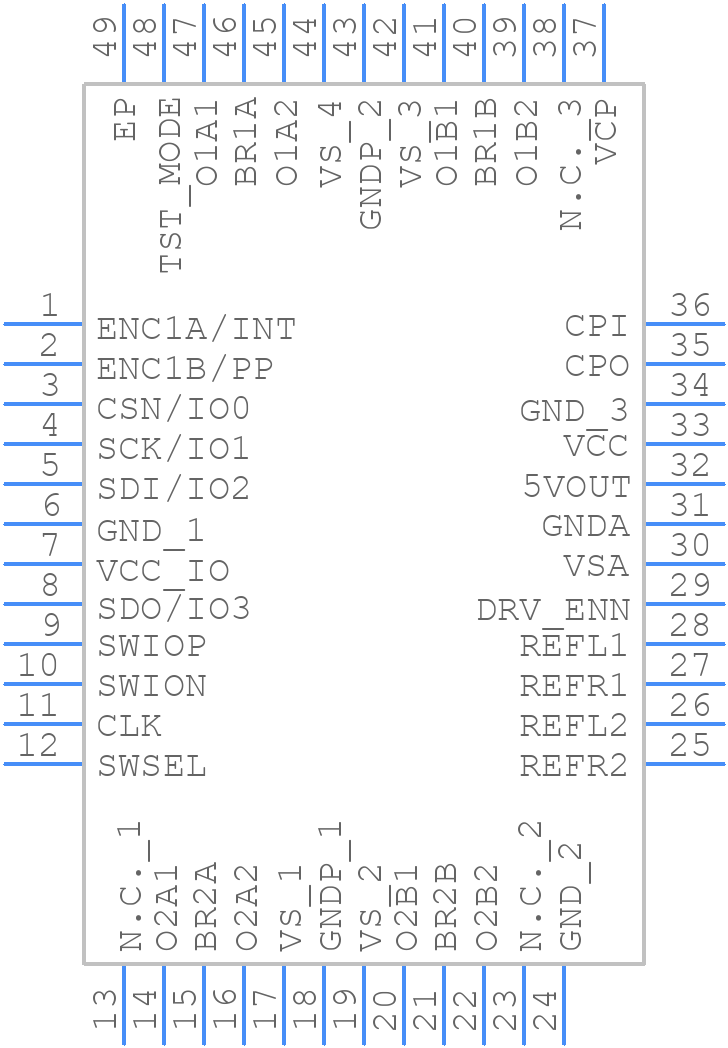

TMC5062-LA-T - Analog Devices

TMC5062-LA-T Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for optimal thermal performance involves placing the TMC5062-LA-T near the edge of the board, using a large copper area for heat dissipation, and avoiding thermal vias under the device. Additionally, a 4-layer board with a dedicated thermal layer can help to dissipate heat more efficiently.
• How do I handle the high current requirements of the device?
  To handle the high current requirements of the TMC5062-LA-T, it is recommended to use a low-ESR capacitor with a high current rating, and to ensure that the PCB traces and vias are designed to handle the high current. Additionally, using a heat sink or a thermal pad can help to dissipate heat generated by the device.
• What is the recommended power-up sequence for the device?
  The recommended power-up sequence for the TMC5062-LA-T is to first apply the analog supply voltage (VCC), followed by the digital supply voltage (VDD), and then the input signals. This sequence helps to prevent latch-up and ensures proper device operation.
• How do I troubleshoot issues with the device's SPI interface?
  To troubleshoot issues with the TMC5062-LA-T's SPI interface, check the clock frequency, clock polarity, and clock phase to ensure they match the device's requirements. Also, verify that the MOSI and MISO lines are properly connected and that there are no signal integrity issues. Use a logic analyzer or oscilloscope to debug the SPI communication.
• What is the maximum allowed voltage on the input pins?
  The maximum allowed voltage on the input pins of the TMC5062-LA-T is the same as the digital supply voltage (VDD), which is typically 3.3V or 5V. Exceeding this voltage can damage the device. Ensure that the input signals are properly clamped or limited to prevent overvoltage conditions.
