TMC5130A-TA-T - Analog Devices

Description: Silent stepper motor cDriver 5 to 20V, up to 1.1A with SPI Interface, 256 µSteps, SixPoint ramp controller, SpreadCycle and Stealthchop

Download TMC5130A-TA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

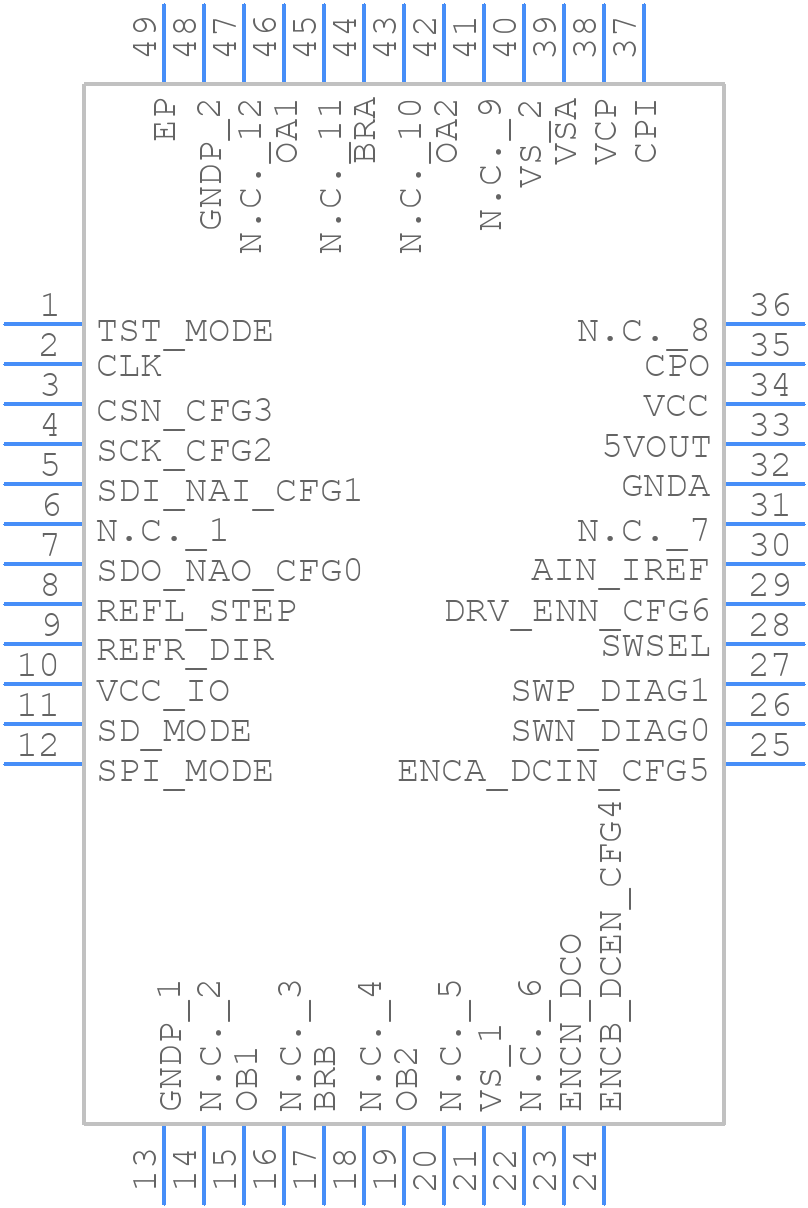

TMC5130A-TA-T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC5130A-TA-T - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-TQFP-7X7X1.0
click to zoom
3D Models
TMC5130A-TA-T - Analog Devices - 3D model - Quad Flat Packages - 48-TQFP-7X7X1.0
click to zoom

TMC5130A-TA-T Details

  • Manufacturer Part Number:

    TMC5130A-TA-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    22 mA

  • Supply Voltage-Max (Vsup):

    46 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TMC5130A-TA-T Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use a common mode choke to filter the motor current.
  • Use the TMC5130A-TA-T's SPI interface to configure the device for the specific motor type and application. The configuration includes setting the motor type, current limits, and acceleration/deceleration rates.
  • The TMC5130A-TA-T can operate in the industrial temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures.
  • Use the device's built-in diagnostic features, such as the fault flags and the SPI interface, to troubleshoot issues. Also, check the PCB layout, motor connections, and power supply for any issues.
  • The TMC5130A-TA-T is designed for use with specific motor types and voltage ratings. Using the device with a different motor type or voltage rating may require additional components or modifications, and may affect the device's performance and reliability.
