TMC5241ATU+ - Analog Devices

Description: 65V 2ARMS Smart Integrated Stepper Driver and Controller 4.5V to 65V DC,0.3V to 70V,-65°C to +150°C

Download TMC5241ATU+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

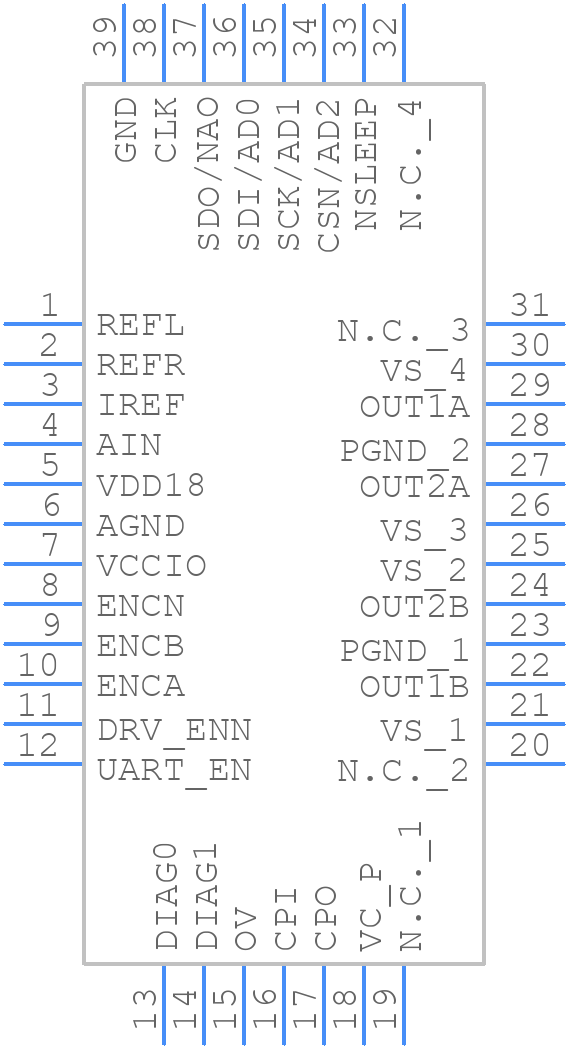

TMC5241ATU+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
TMC5241ATU+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3857-1C
click to zoom
3D Models
TMC5241ATU+ - Analog Devices - 3D model - Quad Flat No-Lead - T3857-1C
click to zoom

TMC5241ATU+ Details

  • Manufacturer Part Number:

    TMC5241ATU+

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMC5241ATU+ Overview

Use the download button to access the TMC5241ATU+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMC52, or try a keyword search, such as Motion Control Electronics
