Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, TI recommends using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure accurate current sensing, it's crucial to follow the recommended layout and placement guidelines, use a low-impedance current sense resistor, and minimize the distance between the sense resistor and the device. Additionally, consider using a Kelvin connection to the sense resistor to reduce errors due to PCB trace resistance.
The maximum allowed voltage on the VDD pin is 5.5V, as specified in the datasheet. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the power supply voltage is within the recommended operating range.
The TMCS1100A1QDT has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal heat sink to dissipate heat efficiently. Ensure good thermal conductivity between the device and the heat sink or ground plane to prevent overheating.
Texas Instruments recommends using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz to filter out high-frequency noise and ensure accurate current sensing. The filter configuration may vary depending on the specific application and noise environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMCS1100A1QDT Overview

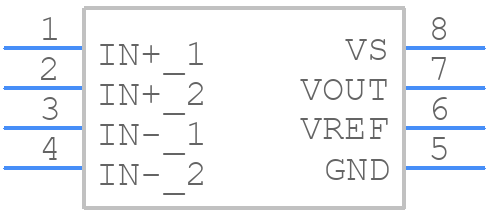

Use the download button to access the TMCS1100A1QDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMCS1,
or try a keyword search, such as Other Sensors/Transducers
