TMCS1100A3QDR - Texas Instruments

Description: HIGH CURRENT SENSING HALL SENSOR

Download TMCS1100A3QDR Model

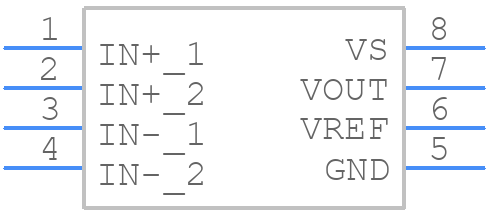

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TMCS1100A3QDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TMCS1100A3QDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

TMCS1100A3QDR Details

  • Manufacturer Part Number:

    TMCS1100A3QDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-06-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    3.895 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.905 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.23

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

TMCS1100A3QDR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device.
  • Use a thermocouple or RTD sensor with a high accuracy rating. Ensure good thermal contact between the sensor and the device under test. Use a low-noise, shielded cable to connect the sensor to the TMCS1100A3QDR. Calibrate the system before use.
  • The maximum cable length depends on the output current and voltage swing. As a general guideline, keep the cable length below 10 feet (3 meters) to minimize signal degradation and noise pickup.
  • No, the TMCS1100A3QDR is designed to operate from a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance.
  • Connect the remote temperature sensor to the TMCS1100A3QDR's analog input pins. Configure the device using the SPI interface to select the correct gain and offset settings for the sensor. Refer to the datasheet for specific configuration details.
