Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, ensure the layout is symmetrical to reduce common-mode noise.
The choice of input and output capacitors depends on the specific application and operating conditions. Generally, use low-ESR capacitors with a high ripple current rating. For the input capacitor, a 10uF to 22uF ceramic capacitor is recommended, while for the output capacitor, a 10uF to 47uF ceramic or electrolytic capacitor is suitable. Consult the datasheet and application notes for more guidance.
The TMCS1100A3QDT is rated for operation up to 125°C, but it's essential to consider the ambient temperature, PCB temperature, and power dissipation when designing the system. Ensure the device is operated within the recommended temperature range to maintain reliability and performance.
To ensure EMC compliance, follow proper PCB layout and design practices, such as using a shielded enclosure, minimizing loop areas, and using filtering components. Additionally, consider using a common-mode choke and EMI filters to reduce emissions and susceptibility. Consult the datasheet and relevant EMC standards for more information.
The TMCS1100A3QDT is specified to operate from 2.9V to 5.5V, but it's recommended to operate within the 3.3V to 5V range for optimal performance and efficiency. Ensure the input voltage is stable and within the recommended range to maintain device reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMCS1100A3QDT Overview

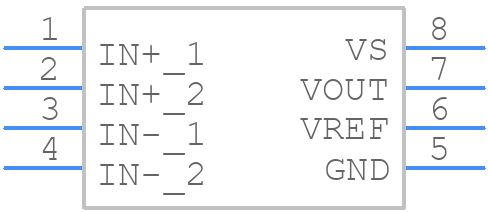

Use the download button to access the TMCS1100A3QDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMCS1,
or try a keyword search, such as Other Sensors/Transducers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
