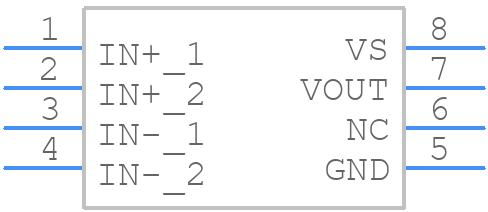

TMCS1101A4UQDR - Texas Instruments

TMCS1101A4UQDR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the TMCS1101A4UQDR?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 10uF) close to the device.
• How do I ensure accurate current sensing with the TMCS1101A4UQDR?
  Use a low-impedance current sense resistor (e.g., 1mΩ) and place it close to the device. Ensure the sense resistor is in the same thermal zone as the device. Use a Kelvin connection to the sense resistor to minimize errors.
• What is the recommended input filter configuration for the TMCS1101A4UQDR?
  A 2nd-order low-pass filter (e.g., RC filter with R=1kΩ and C=10nF) is recommended to filter out high-frequency noise and ensure accurate measurements.
• How do I handle overcurrent conditions with the TMCS1101A4UQDR?
  Use the device's built-in overcurrent detection feature, which can be configured to trigger an interrupt or reset the device. Implement a suitable overcurrent protection scheme, such as a fuse or a current limiter, to prevent damage to the device and the system.
• What is the thermal management strategy for the TMCS1101A4UQDR?
  Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device. Consider using a thermal interface material (e.g., thermal tape or thermal grease) to improve heat transfer.
