Part Image

TMCS1107A4BQDR - Texas Instruments

Description: Board Mount Current Sensors 420-V isolated Hall-effect current sensor with internal reference 8-SOIC -40 to 85

Download TMCS1107A4BQDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

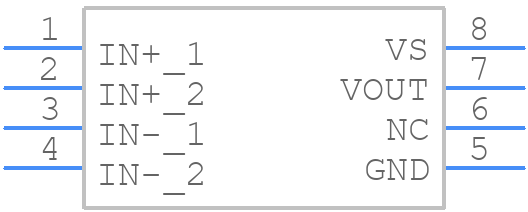

Symbol
TMCS1107A4BQDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMCS1107A4BQDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - (D0008A-H=1.75
click to zoom
3D Models
TMCS1107A4BQDR - Texas Instruments - 3D model - Small Outline Packages - (D0008A-H=1.75
click to zoom

TMCS1107A4BQDR Details

  • Manufacturer Part Number:

    TMCS1107A4BQDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    3.895 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.905 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

TMCS1107A4BQDR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors.
  • The TMCS1107A4BQDR requires a 1.8V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a clean power supply. Decoupling capacitors (e.g., 0.1uF and 10uF) should be placed close to the device to filter out noise and reduce electromagnetic interference (EMI).
  • The TMCS1107A4BQDR is rated for operation from -40°C to 125°C, but it's recommended to operate within the specified temperature range for optimal performance and reliability.
  • The TMCS1107A4BQDR has a programmable gain amplifier, and the gain setting can affect noise performance. It's recommended to follow the datasheet guidelines for gain setting and to use the internal noise filtering features, such as the programmable high-pass filter, to optimize noise performance.
  • The TMCS1107A4BQDR uses a SPI-compatible interface, and it's recommended to use a 3-wire or 4-wire SPI interface protocol, depending on the specific application requirements.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TMCS1107A4BQDR Overview

Use the download button to access the TMCS1107A4BQDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMCS1, or try a keyword search, such as Other Sensors/Transducers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
