Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the layout is symmetrical and balanced to reduce common-mode noise.
The TMCS1123A1AQDVGR can deliver up to 3A of output current. To handle this, use a suitable PCB trace width and thickness to minimize voltage drops and heat generation. Consider using a heat sink or thermal pad to dissipate heat, especially in high-current applications.
The recommended input capacitor value is 10uF to 22uF, with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 6.3V. A ceramic or tantalum capacitor is suitable for this application. Ensure the capacitor is placed close to the VIN pin to minimize noise and voltage drops.
The TMCS1123A1AQDVGR has an adjustable output voltage. To configure it, connect the VOUT pin to the desired output voltage through a resistive divider network (R1 and R2). Calculate the resistor values using the formula provided in the datasheet, and ensure the resistors have a 1% tolerance or better to maintain accuracy.
The thermal shutdown temperature of the TMCS1123A1AQDVGR is typically around 150°C to 160°C. When the device exceeds this temperature, it will shut down to prevent damage. Ensure proper heat dissipation and thermal management to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMCS1123A1AQDVGR Overview

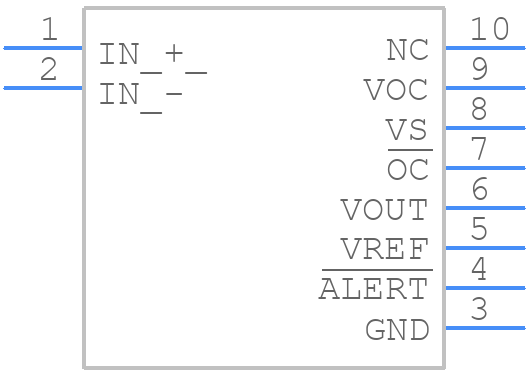

Use the download button to access the TMCS1123A1AQDVGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMCS1,
or try a keyword search, such as Other Sensors/Transducers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
