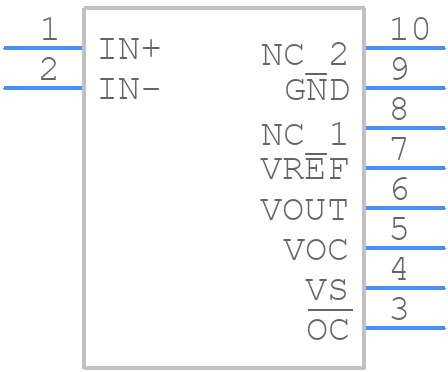

TMCS1126A7AQDVGRQ1 - Texas Instruments

TMCS1126A7AQDVGRQ1 Details

• Manufacturer Part Number:

  TMCS1126A7AQDVGRQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Body Breadth:

  7.5 mm

• Body Height:

  2.65 mm

• Body Length or Diameter:

  10.3 mm

• Housing:

  PLASTIC

• JESD-609 Code:

  e3

• Mounting Feature:

  SURFACE MOUNT

• Number of Terminals:

  10

• Operating Current-Max:

  14.5 mA

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  ANALOG

• Output Circuit Type:

  SINGLE-ENDED

• Output Polarity:

  NON-INVERTING

• Output Type:

  ANALOG VOLTAGE

• Package Equivalence Code:

  SOP10,.4

• Package Shape/Style:

  RECTANGULAR

• Screening Level:

  AEC-Q100

• Sensors/Transducers Type:

  MAGNETIC FIELD SENSOR,HALL EFFECT

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Surface Mount:

  YES

• Terminal Finish:

  Silver (Ag)

• Termination Type:

  SOLDER
