TMCS1126ADx-Q1 - Texas Instruments

Description: Precision Hall-effect current sensor in a 10.3 × 10.3 mm SOIC-10 (DVG) package, AEC-Q100 Grade 1 qualified, with reinforced 5 kVRMS isolation, ±0.1% sensitivity error, 500 kHz bandwidth, ±103 A max current, 80 ARMS continuous, ±0.2 mV offset, 60 ns delay, 3–5.5 V supply, bidirectional/unidirectional sensing, and integrated overcurrent detection in 100 ns, ideal for automotive OBC, DC/DC, PDU, and EV charging.

Download TMCS1126ADx-Q1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

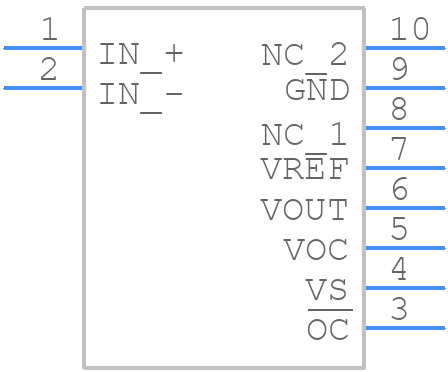

TMCS1126ADx-Q1 - Texas Instruments - PCB symbol
