For optimal performance, it is recommended to follow Texas Instruments' PCB layout guidelines, which include keeping the analog and digital grounds separate, using a solid ground plane, and placing the device near the analog signal sources. Additionally, a thermal pad on the bottom of the package should be connected to a thermal relief pattern on the PCB to dissipate heat efficiently.
The TMCS1133A1AQDVGR requires calibration to ensure accurate measurements. This can be done by applying a known input voltage and adjusting the internal gain and offset registers to achieve the desired output. The calibration process should be performed at the operating temperature range and with the same power supply voltage as the application.
Although the datasheet specifies an input voltage range of 0 to 5V, it is recommended to limit the input voltage to 0 to 3.3V to ensure optimal linearity and accuracy. Exceeding this range may result in reduced performance and accuracy.
To minimize EMI and EMC issues, it is recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input signals. Additionally, the PCB layout should be designed to minimize radiation and ensure good grounding.
The typical power-on time for the TMCS1133A1AQDVGR is around 10ms, and the settling time is around 5ms. However, these times may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMCS1133A1AQDVGR Overview

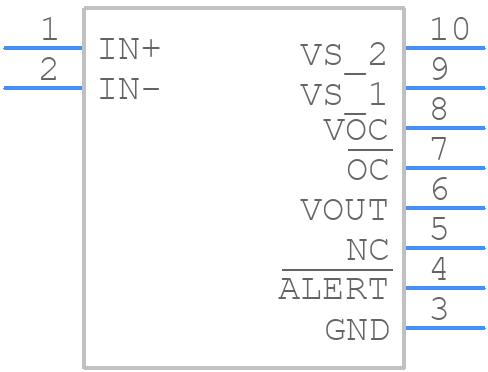

Use the download button to access the TMCS1133A1AQDVGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMCS1,
or try a keyword search, such as Other Sensors/Transducers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
