Texas Instruments provides a recommended PCB layout in the application note SLVAUH5, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TMDS141RHARG4 is a flexible HDMI repeater that can be configured for different HDMI versions (e.g., HDMI 1.4, HDMI 2.0, HDMI 2.1) through the use of external resistors and capacitors. The configuration depends on the specific HDMI version and the requirements of the application. Refer to the datasheet and application notes for more information.
The maximum cable length supported by TMDS141RHARG4 depends on the HDMI version, cable quality, and signal frequency. As a general guideline, the TMDS141RHARG4 can support cable lengths up to 30 meters for HDMI 1.4 and up to 10 meters for HDMI 2.0. However, it's recommended to perform signal integrity analysis and testing to determine the maximum cable length for a specific application.
Texas Instruments provides a troubleshooting guide in the application note SLVAUH6, which covers common issues and their solutions. Additionally, engineers can use tools such as oscilloscopes, signal generators, and HDMI analyzers to debug and troubleshoot issues with the TMDS141RHARG4.
The TMDS141RHARG4 is a HDMI-specific repeater and is not compatible with other standards such as DisplayPort or MHL. However, it can be used in conjunction with other devices that support HDMI-to-DisplayPort or HDMI-to-MHL conversion.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMDS141RHARG4 Overview

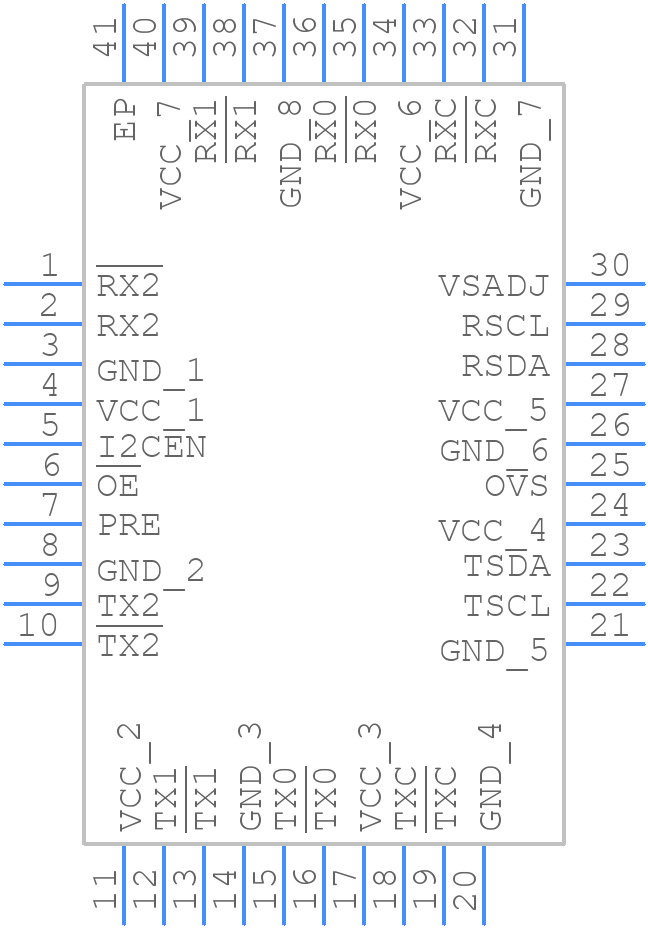

Use the download button to access the TMDS141RHARG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMDS1,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
