- Part Number TMDS171IRGZT
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGZ0048B
- Released Date Apr 19, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TMDS171IRGZT Details
-
Manufacturer Part Number:
TMDS171IRGZT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Interface IC Type:
RETIMER
TMDS171IRGZT Frequently Asked Questions (FAQs)
-
A good PCB layout for the TMDS171IRGZT involves keeping the differential pairs close together, using a solid ground plane, and minimizing the length of the transmission lines. It's also recommended to use a common-mode choke and a shielded cable to reduce EMI.
-
To ensure signal integrity with the TMDS171IRGZT, it's essential to maintain a controlled impedance environment, use a high-quality PCB material, and minimize the number of vias and layer transitions. Additionally, using a signal integrity analysis tool can help identify potential issues.
-
The maximum cable length supported by the TMDS171IRGZT depends on the specific application and the type of cable used. However, as a general rule, the maximum cable length should not exceed 10 meters to ensure reliable data transmission.
-
To troubleshoot issues with the TMDS171IRGZT, start by checking the power supply voltage, clock frequency, and data transmission rate. Use an oscilloscope to verify the signal integrity and check for any signs of signal degradation or distortion. Also, ensure that the device is properly configured and that the firmware is up-to-date.
-
Yes, the TMDS171IRGZT is designed to be compatible with other Texas Instruments devices, including DSPs, microcontrollers, and FPGAs. However, it's essential to verify the compatibility of specific devices and ensure that they are configured correctly for proper operation.
Trust Checks
Community Provided
System Verified
Community Approved
TMDS171IRGZT Overview

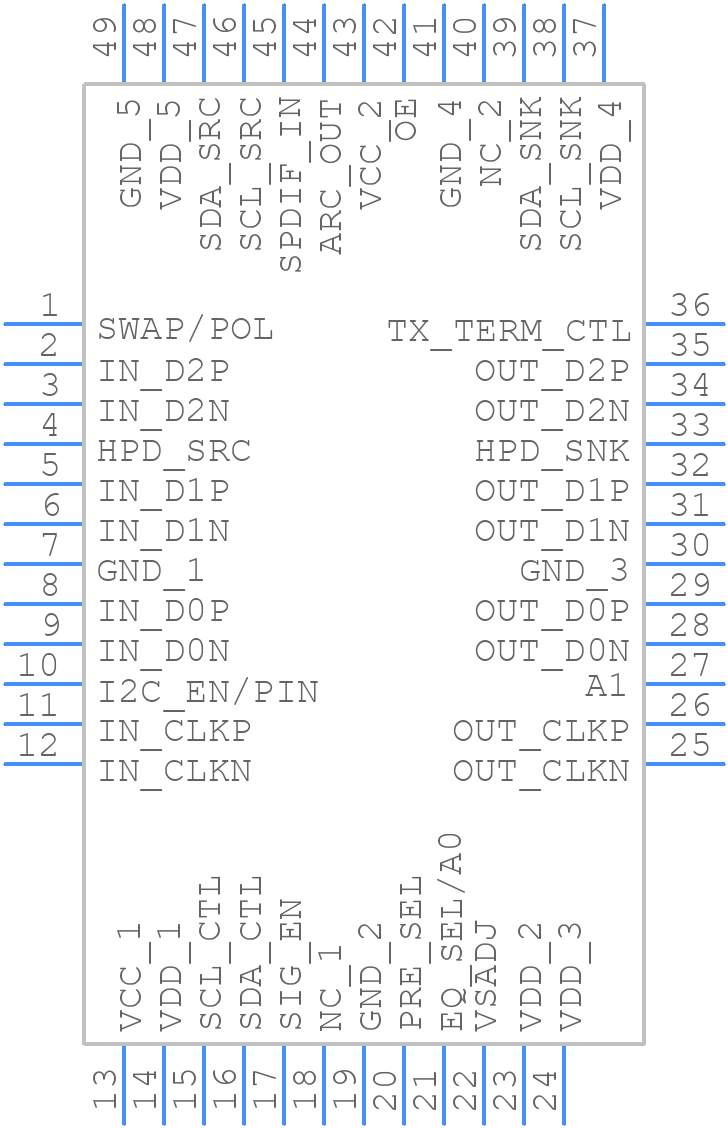

Use the download button to access the TMDS171IRGZT schematic symbol, PCB footprint, and 3D model.
