Traco Power recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.
Yes, the TMH1215D is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration levels. Traco Power recommends following the IPC-9592 standard for vibration testing.
The TMH1215D meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. To ensure compliance, engineers should follow the recommended layout and assembly guidelines, and ensure that the module is used within its specified operating conditions.
The maximum capacitance on the output of the TMH1215D depends on the specific application and the required hold-up time. As a general rule, Traco Power recommends limiting the output capacitance to 10uF or less to ensure stable operation. However, it's essential to consult with Traco Power's application engineers for specific guidance on output capacitance selection.
Yes, the TMH1215D can be used in a redundant configuration to achieve high reliability. Traco Power recommends using a redundant architecture with diode ORing or another suitable redundancy scheme to ensure that the system remains operational in the event of a module failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMH1215D Overview

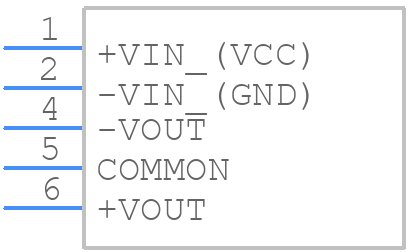

Use the download button to access the TMH1215D schematic symbol, PCB footprint, and 3D model.
