TMM-6-0-10-1 - Amphenol

Description: AMPHENOL ICC - TMM-6-0-10-1 - PCB Receptacle, Wire-to-Board, 1.27 mm, 2 Rows, 10 Contacts, Surface Mount, TMM Series

Download TMM-6-0-10-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

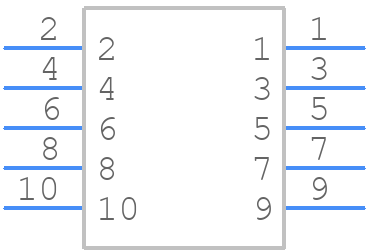

TMM-6-0-10-1 - Amphenol - PCB symbol
click to zoom
PCB Footprints

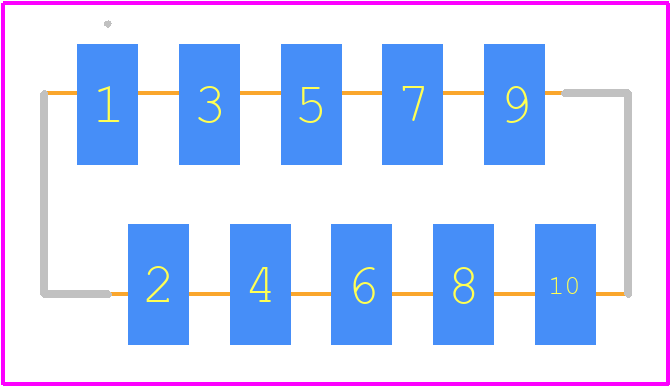

TMM-6-0-10-1 - Amphenol PCB footprint - Other - Other - TMM-6-0-10-1-5
click to zoom
3D Models
TMM-6-0-10-1 - Amphenol - 3D model - Other - TMM-6-0-10-1-5
click to zoom

TMM-6-0-10-1 Details

  • Manufacturer Part Number:

    TMM-6-0-10-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    13

  • Additional Feature:

    STAGGERED CONFIGURATION

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

TMM-6-0-10-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the TMM-6-0-10-1 connector. It's essential to follow the recommended torque value to ensure proper mating and prevent damage to the connector.
  • Yes, the TMM-6-0-10-1 connector is designed to withstand high-vibration environments. It has a ruggedized design and is built to meet the requirements of MIL-DTL-38999, which includes vibration testing.
  • Yes, the TMM-6-0-10-1 connector is designed to operate in harsh environments. It has a temperature range of -65°C to 200°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended operating conditions and environmental considerations outlined in the datasheet.
  • The TMM-6-0-10-1 connector has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 mating and unmating cycles without compromising its performance or reliability.
  • Yes, the TMM-6-0-10-1 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant. It meets the requirements of EU directives 2011/65/EU and (EC) No 1907/2006, respectively.
