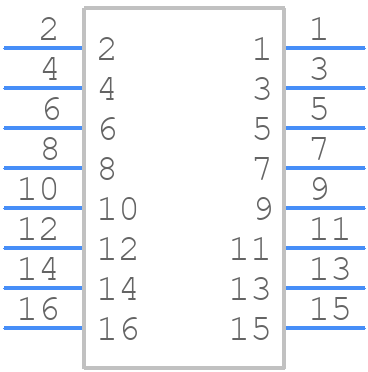

TMM-6-0-16-1 - Amphenol - PCB symbol
click to zoom
PCB Footprints

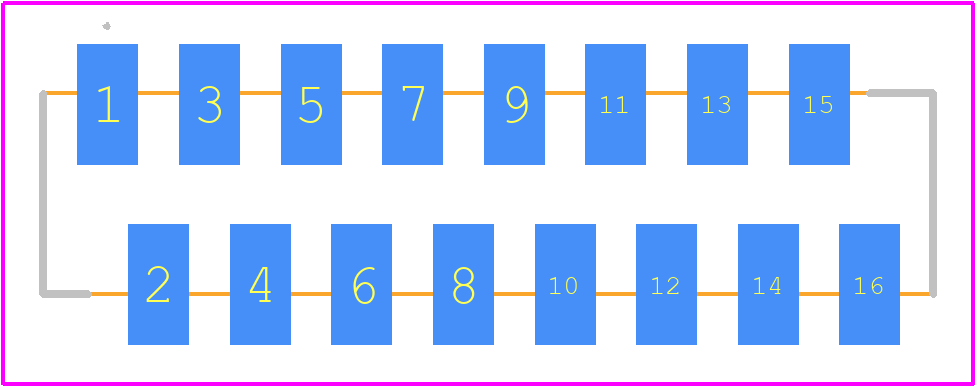

TMM-6-0-16-1 - Amphenol PCB footprint - Other - Other - TMM-6-0-16-1-2
click to zoom
3D Models
TMM-6-0-16-1 - Amphenol - 3D model - Other - TMM-6-0-16-1-2
click to zoom

TMM-6-0-16-1 Details

  • Manufacturer Part Number:

    TMM-6-0-16-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    13

  • Additional Feature:

    STAGGERED CONFIGURATION

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

TMM-6-0-16-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the TMM-6-0-16-1 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks and 5-7 in-lbs (0.6-0.8 Nm) for the jack screws.
  • Yes, the TMM-6-0-16-1 connector is designed to withstand high-vibration environments. It meets the requirements of MIL-DTL-38999, which includes vibration testing.
  • The TMM-6-0-16-1 connector is designed to operate in a wide temperature range (-65°C to 200°C) and can withstand exposure to various chemicals, including fuels, oils, and cleaning solvents. However, it's essential to consult the datasheet and Amphenol's application notes for specific guidance on environmental usage.
  • The TMM-6-0-16-1 connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the TMM-6-0-16-1 connector is part of the TMM series, which is designed to be intermateable with other connectors in the same series. However, it's essential to verify the specific part number and configuration to ensure compatibility.
