TMMH-110-01-F-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

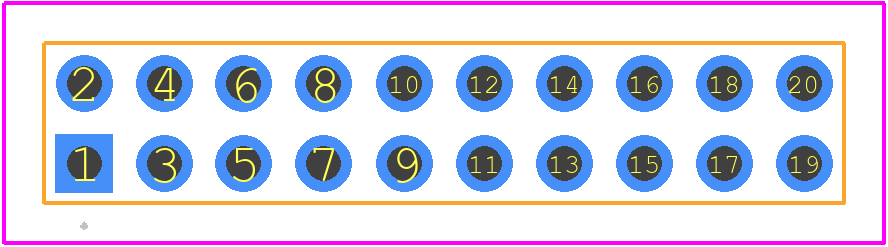

TMMH-110-01-F-D - SAMTEC PCB footprint - Other - Other - TMMH-110-01-F-D-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMMH-110-01-F-D
Part Number TMMH-110-01-F-D
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - TMMH-110-01-F-D-3
Released Date Jul 25, 2026
Last Modified Date Jul 25, 2026 7:33 AM UTC
Pinout / Pin List Click Here (Member Only)

TMMH-110-01-F-D Details

Manufacturer Part Number:
TMMH-110-01-F-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.157 inch
Body Depth:
0.079 inch
Body Length:
0.79 inch
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Dielectric Withstanding Voltage:
1000VAC V
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
4.5 A
Reference Standard:
UL
Terminal Length:
0.097 inch
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
20

TMMH-110-01-F-D Frequently Asked Questions (FAQs)

The recommended mating sequence for TMMH-110-01-F-D is to mate the headers first, followed by the sockets. This ensures proper alignment and prevents damage to the contacts.
Yes, the TMMH-110-01-F-D is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure the connector remains secure.
The TMMH-110-01-F-D has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
Yes, the TMMH-110-01-F-D is designed for high-speed signal transmission and is capable of supporting data rates up to 10 Gbps. However, it's essential to follow proper PCB design and layout guidelines to minimize signal degradation.
The TMMH-110-01-F-D has a moisture-resistant design, but it's not intended for immersion in water or exposure to extreme humidity. If you need to use the connector in a humid or wet environment, consider applying a conformal coating or using a sealed connector system.
