![TMP03FSZ - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-](https://media.componentsearchengine.com/images/available.svg?v=0.74.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TMP03FSZ
- Part Number TMP03FSZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - - [SOIC_N]-
- Released Date Dec 28, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TMP03FSZ Details
-
Manufacturer Part Number:
TMP03FSZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
TMP03FSZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the TMP03FSZ involves placing the device near the thermal source, using a thermal relief pattern, and minimizing copper pours and thermal masses around the device.
-
To minimize noise, use a low-pass filter, such as an RC filter, to condition the output signal. Additionally, consider using a shielded cable and a ground plane to reduce electromagnetic interference.
-
Calibrate the TMP03FSZ by applying a known temperature to the device and measuring the output voltage. Use a calibration equation or look-up table to convert the output voltage to temperature.
-
Use a thermally conductive interface material, such as thermal tape or thermal grease, to ensure good thermal contact between the TMP03FSZ and the heat source. Also, consider using a heat sink or thermal shield to reduce thermal gradients.
-
The maximum cable length depends on the specific application and noise environment. As a general guideline, keep the cable length as short as possible (less than 1 meter) to minimize signal degradation and noise pickup.
Trust Checks
Community Provided
System Verified
Community Approved
TMP03FSZ Overview

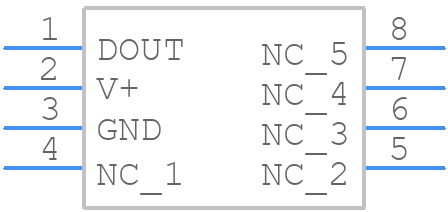

Use the download button to access the TMP03FSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP03,
or try a keyword search, such as Temperature Sensors
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
