TMP107BID - Texas Instruments

Description: ±0.4°C Temperature Sensor with Daisy-Chain UART, EEPROM, and Alert Function

Download TMP107BID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

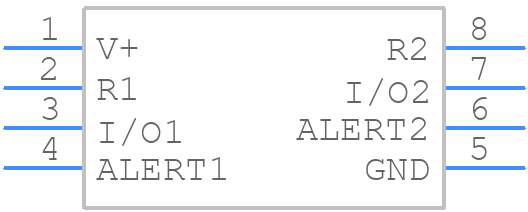

Symbol
TMP107BID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP107BID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TMP107BID - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TMP107BID Details

  • Manufacturer Part Number:

    TMP107BID

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    0.4 Cel

  • Body Breadth:

    3.895 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.905 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    14

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.035 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP107BID Frequently Asked Questions (FAQs)

  • The TMP107BID has an accuracy of ±1°C over the entire operating temperature range of -40°C to 125°C.
  • The TMP107BID can be configured for remote temperature sensing by connecting the remote diode to the VDD pin and the local diode to the GND pin. The remote diode should be connected to the remote temperature sensing point.
  • The maximum cable length for remote temperature sensing with the TMP107BID is 10 meters (33 feet). However, this can be extended up to 100 meters (330 feet) with the use of a repeater or an amplifier.
  • The temperature reading can be calculated from the TMP107BID's digital output using the following formula: Temperature (°C) = (ADC Code x 0.0625) - 273.15. The ADC Code is the 12-bit digital output from the TMP107BID.
  • The power consumption of the TMP107BID is typically 1.5 mA at 3.3 V supply voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP107BID Overview

Use the download button to access the TMP107BID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP10, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
