TMP117AIDRVR footprint, schematic symbol and 3D model by Texas Instruments

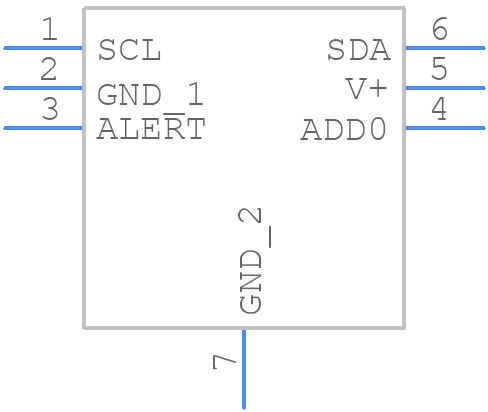

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TMP117AIDRVR
Part Number TMP117AIDRVR
Manufacturer Texas Instruments
Pin Count 7
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - TMP117AIDRVR-1
Released Date Jan 22, 2019
Last Modified Date Jun 22, 2023 2:40 AM UTC
Pinout / Pin List Click Here (Member Only)

TMP117AIDRVR Details

Manufacturer Part Number:
TMP117AIDRVR
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Date Of Intro:
2018-10-01
Manufacturer:
Texas Instruments
YTEOL:
15
Accuracy-Max (Cel):
0.1 Cel
Body Breadth:
2 mm
Body Height:
0.8 mm
Body Length or Diameter:
2 mm
Housing:
PLASTIC
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Bits:
16
Number of Terminals:
6
Operating Current-Max:
0.005 mA
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-55 °C
Output Interface Type:
2-WIRE INTERFACE
Package Body Material:
PLASTIC/EPOXY
Package Shape/Style:
SQUARE
Sensors/Transducers Type:
TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
1.8 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Termination Type:
SOLDER

TMP117AIDRVR Frequently Asked Questions (FAQs)

The TMP117AIDRVR can measure temperatures from -20°C to 150°C with an accuracy of ±0.5°C.
The TMP117AIDRVR has a low power consumption of 10 μA (typical) and a thermal gradient compensation circuit to minimize self-heating effects, ensuring accurate temperature measurements.
The TMP117AIDRVR has a resolution of 0.0078°C (16-bit) for temperature measurements.
Yes, the TMP117AIDRVR is designed to operate in high-vibration and high-shock environments, making it suitable for industrial and automotive applications.
The TMP117AIDRVR has built-in electromagnetic interference (EMI) filters to minimize the effects of electromagnetic noise on temperature measurements.

Trust Checks

Community Provided

System Verified

Community Approved

TMP117AIDRVR Overview

Use the download button to access the TMP117AIDRVR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like TMP11, or try a keyword search, such as Temperature Sensors
