TMP141AIDGKR - Texas Instruments

Description: Board Mount Temperature Sensors Digital Out Temperature Sensor

Download TMP141AIDGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

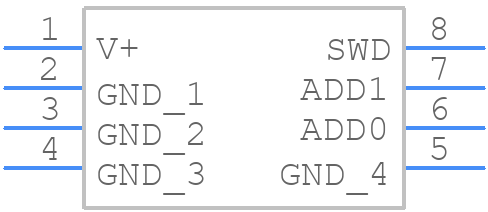

TMP141AIDGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP141AIDGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK(S-PDOS-G8)
click to zoom
3D Models
TMP141AIDGKR - Texas Instruments - 3D model - Small Outline Packages - DGK(S-PDOS-G8)
click to zoom

TMP141AIDGKR Details

  • Manufacturer Part Number:

    TMP141AIDGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    HYSTERESIS 300 MV

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.12 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

TMP141AIDGKR Frequently Asked Questions (FAQs)

  • The TMP141AIDGKR has an accuracy of ±1°C from -20°C to 70°C and ±2°C from -40°C to 125°C. This is specified in the datasheet, but engineers often ask for clarification on the accuracy over the entire operating range.
  • When the TMP141AIDGKR is not connected to a microcontroller or ADC, its output voltage can float. To prevent this, connect a 10kΩ pull-down resistor between the output pin and GND to ensure a stable output voltage.
  • To minimize thermal gradients and noise, use a 4-layer PCB with a solid ground plane, keep the sensor away from heat sources, and use a short, direct trace from the sensor to the ADC or microcontroller. Avoid routing digital signals near the sensor's output trace.
  • Yes, the TMP141AIDGKR is rated for operation up to 125°C, making it suitable for high-temperature environments. However, ensure that the device is properly soldered and the PCB is designed to withstand the high temperatures.
  • The TMP141AIDGKR does not require calibration. It is a calibrated device with a built-in temperature sensor and analog-to-digital converter. Simply connect it to a microcontroller or ADC and read the output voltage to obtain the temperature measurement.
