TMP141AIDGKT - Texas Instruments

Description: Texas Instruments TMP141AIDGKT, Temperature Sensor -55 → +127 °C ±0.2°C 1-Wire, 8-Pin MSOP

Download TMP141AIDGKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

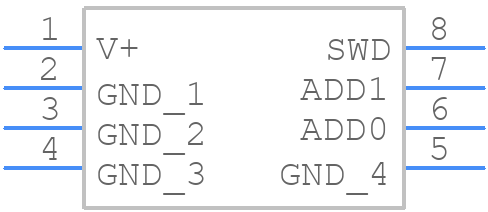

TMP141AIDGKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP141AIDGKT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TMP141AIDGKT - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TMP141AIDGKT Details

  • Manufacturer Part Number:

    TMP141AIDGKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN, MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    HYSTERESIS 300 MV

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.12 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Termination Type:

    SOLDER

TMP141AIDGKT Frequently Asked Questions (FAQs)

  • The TMP141AIDGKT can operate from -40°C to 125°C, but the accuracy specifications are only guaranteed from -20°C to 85°C.
  • To ensure accurate temperature readings, make sure to follow proper PCB layout and thermal design guidelines, and avoid exposing the device to high temperatures during soldering or reflow.
  • While the TMP141AIDGKT can operate up to 125°C, it's not recommended for high-temperature applications due to potential accuracy and reliability issues. Consider using a more suitable temperature sensor for high-temperature applications.
  • The typical current consumption of the TMP141AIDGKT is around 10 μA, but this can vary depending on the operating frequency and mode.
  • The TMP141AIDGKT uses a 2-wire I2C interface, which can be easily interfaced with most microcontrollers. Make sure to follow the I2C protocol and timing specifications to ensure reliable communication.
