Texas Instruments recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to minimize thermal resistance. Additionally, keeping the sensor away from heat sources and using thermal vias can improve accuracy.
The TMP175's output can be noisy due to its high sensitivity. To filter out noise, a simple RC low-pass filter with a cutoff frequency of around 10 Hz can be used. Additionally, averaging multiple readings or using a digital filter in the microcontroller can also help reduce noise.
The maximum cable length for the TMP175's digital output depends on the specific application and noise environment. As a general rule, Texas Instruments recommends keeping the cable length as short as possible (less than 10 cm) to minimize signal degradation and noise pickup. If longer cables are necessary, using a differential signal or a signal repeater can help maintain signal integrity.
The TMP175 has a built-in calibration mechanism, but for high-accuracy applications, additional calibration may be necessary. This can be done by measuring the sensor's output at multiple temperature points and creating a custom calibration curve. Texas Instruments provides a calibration guide and software tools to assist with this process.
The TMP175's response time to temperature changes depends on the thermal mass of the sensor and the surrounding environment. Typically, the response time is around 10-30 seconds for a 10°C temperature change. However, this can vary depending on the specific application and thermal conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMP175AIDG4 Overview

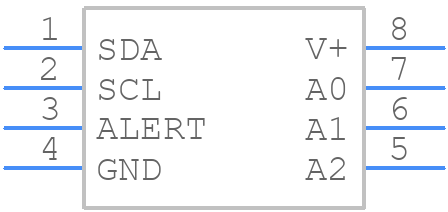

Use the download button to access the TMP175AIDG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP17,
or try a keyword search, such as Temperature Sensors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
