TMP1826DGKR - Texas Instruments

Description: Temperature Sensor Digital, Local -55°C ~ 150°C 16 b 8-VSSOP 1-Wire® 1.7V ~ 5.5V Surface Mount

Download TMP1826DGKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

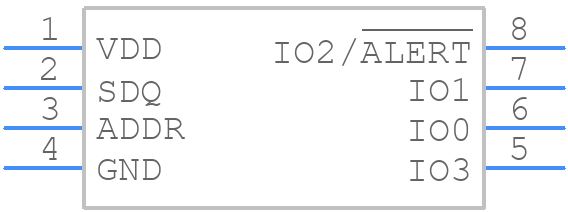

Symbol
TMP1826DGKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP1826DGKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK0008A
click to zoom
3D Models
TMP1826DGKR - Texas Instruments - 3D model - Small Outline Packages - DGK0008A
click to zoom

TMP1826DGKR Details

  • Manufacturer Part Number:

    TMP1826DGKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    0.3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.154 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

TMP1826DGKR Frequently Asked Questions (FAQs)

  • The maximum power consumption of the TMP1826DGKR is 1.5mA, which is specified in the datasheet as the maximum quiescent current (IQ) at 3.3V supply voltage.
  • The TMP1826DGKR has an accuracy of ±1°C (max) over the temperature range of -20°C to 100°C, and ±2°C (max) over the extended temperature range of -40°C to 125°C.
  • Yes, the TMP1826DGKR supports a multi-drop bus configuration, allowing multiple devices to share the same bus. However, the maximum number of devices on the bus is limited to 8, and the bus capacitance should be kept below 400pF to ensure reliable operation.
  • The response time of the TMP1826DGKR to a temperature change is typically around 10ms, but this can vary depending on the thermal resistance of the package and the thermal mass of the surrounding environment.
  • No, the TMP1826DGKR is not compatible with 5V systems. It is designed to operate from a 2.7V to 3.6V supply voltage, and exceeding this voltage range may damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP1826DGKR Overview

Use the download button to access the TMP1826DGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP18, or try a keyword search, such as Temperature Sensors
