TMP1827NNGRR - Texas Instruments

Description: Board Mount Temperature Sensors 1-Wire SHA-256 authenticator with 2Kbit EEPROM and integrated +/-0.2C temperature sensor 8-WSON -55 to 150

Download TMP1827NNGRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

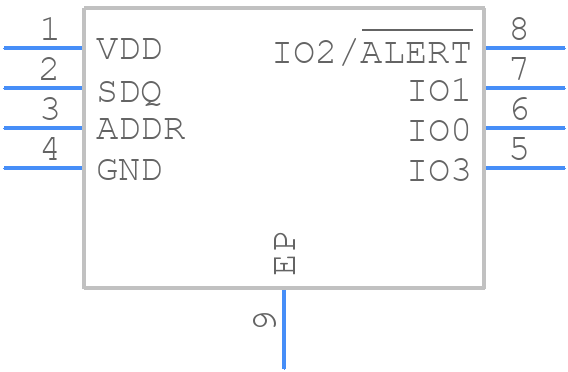

TMP1827NNGRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP1827NNGRR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NGR0008C
click to zoom
3D Models
TMP1827NNGRR - Texas Instruments - 3D model - Small Outline No-lead - NGR0008C
click to zoom

TMP1827NNGRR Details

  • Manufacturer Part Number:

    TMP1827NNGRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    0.9 Cel

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.725 mm

  • Body Length or Diameter:

    2.5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.154 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    SOLCC8,.1,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

TMP1827NNGRR Frequently Asked Questions (FAQs)

  • The maximum power consumption of the TMP1827NNGRR is typically around 1.5mA, but it can be as low as 0.5mA in low-power mode.
  • The TMP1827NNGRR has an accuracy of ±1°C from -20°C to 100°C and ±2°C from -40°C to 150°C, making it suitable for most industrial and commercial applications.
  • Yes, the TMP1827NNGRR can operate in high-temperature environments up to 150°C, but it's essential to ensure proper thermal management and follow the recommended operating conditions to maintain accuracy and reliability.
  • The response time of the TMP1827NNGRR is typically around 30ms, but it can be affected by the thermal mass of the device and the surrounding environment.
  • Yes, the TMP1827NNGRR is suitable for low-power battery-powered devices due to its low power consumption and shutdown mode, which can help extend battery life.
