TMP400AIDBQR - Texas Instruments

Description: Temp Sensor Digital Serial (2-Wire, SMbus) 16-Pin SSOP T/R

Download TMP400AIDBQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

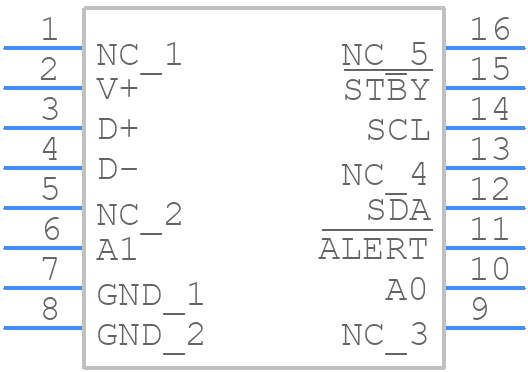

TMP400AIDBQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP400AIDBQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
TMP400AIDBQR - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

TMP400AIDBQR Details

  • Manufacturer Part Number:

    TMP400AIDBQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.038 mA

  • Operating Temperature-Max:

    127 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP400AIDBQR Frequently Asked Questions (FAQs)

  • The TMP400AIDBQR can operate from -40°C to 125°C, but the accuracy specifications are only guaranteed from -20°C to 85°C.
  • The TMP400AIDBQR can be configured for remote temperature sensing by connecting the remote diode to the RDI pin and using the REXT pin to set the remote diode current. Refer to the datasheet for specific configuration details.
  • The REXT pin is used to set the remote diode current, which is necessary for remote temperature sensing. A resistor connected between REXT and GND sets the current.
  • Yes, the TMP400AIDBQR is suitable for high-accuracy temperature measurement applications, with an accuracy of ±1°C from -20°C to 85°C and ±2°C from -40°C to 125°C.
  • The TMP400AIDBQR can be interfaced with a microcontroller using an analog-to-digital converter (ADC) to read the temperature data. The TMP400AIDBQR outputs an analog voltage proportional to the temperature, which can be converted to a digital value using the ADC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP400AIDBQR Overview

Use the download button to access the TMP400AIDBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP40, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
