TMP401AIDGKT - Texas Instruments

Description: Remote and Local Temperature Sensor with N-Factor and Series-R Correction in VSSOP-8

Download TMP401AIDGKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

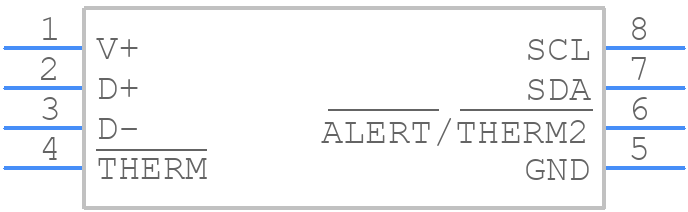

TMP401AIDGKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP401AIDGKT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK(S-PDOS-G8)
click to zoom
3D Models
TMP401AIDGKT - Texas Instruments - 3D model - Small Outline Packages - DGK(S-PDOS-G8)
click to zoom

TMP401AIDGKT Details

  • Manufacturer Part Number:

    TMP401AIDGKT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    3 Cel

  • Additional Feature:

    HYSTERESIS 0.5V

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.036 mA

  • Operating Temperature-Max:

    127 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Termination Type:

    SOLDER
