TMP411ADGKTG4 - Texas Instruments

Description: TEXAS INSTRUMENTS - TMP411ADGKTG4 - IC, TEMP SENSOR, 12BIT, 1 C, MSOP-8, FULL REEL

Download TMP411ADGKTG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

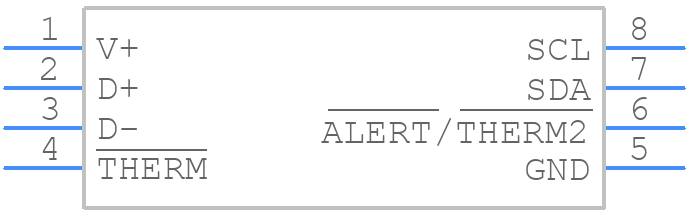

TMP411ADGKTG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP411ADGKTG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TMP411ADGKTG4 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TMP411ADGKTG4 Details

  • Manufacturer Part Number:

    TMP411ADGKTG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    1 Cel

  • Additional Feature:

    HYSTERESIS 500 MV

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    127 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Temperature Coefficient:

    POSITIVE ppm/°C

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP411ADGKTG4 Frequently Asked Questions (FAQs)

  • The TMP411ADGKTG4 can operate from -40°C to 125°C, but the accuracy of the temperature measurement is specified from -20°C to 105°C.
  • The TMP411ADGKTG4 can be configured for remote temperature sensing by connecting the internal diode to a remote diode or thermistor. The internal diode is connected to pins 1 and 2, and the remote diode or thermistor is connected to pins 3 and 4. The device can be configured using the internal registers to select the remote sensing mode.
  • The conversion time for the TMP411ADGKTG4 is typically 30 ms, but it can be as low as 10 ms in fast conversion mode.
  • The digital output of the TMP411ADGKTG4 is a 12-bit code that represents the temperature in Celsius. The temperature can be calculated using the formula: Temperature (°C) = (Digital Output Code x 0.0625) - 273.15.
  • The power consumption of the TMP411ADGKTG4 is typically 1.5 mA at 3.3 V supply voltage, but it can be as low as 0.5 mA in shutdown mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP411ADGKTG4 Overview

Use the download button to access the TMP411ADGKTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP41, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
