TMP411BQDGKRQ1 - Texas Instruments

Description: Automotive Grade, Remote and Local Temperature Sensor with N-Factor and Series-R Correction

Download TMP411BQDGKRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

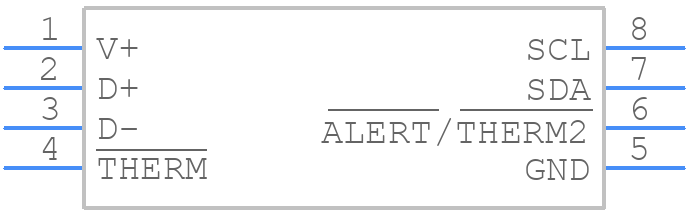

TMP411BQDGKRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP411BQDGKRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TMP411BQDGKRQ1 - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TMP411BQDGKRQ1 Details

  • Manufacturer Part Number:

    TMP411BQDGKRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.03 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Termination Type:

    SOLDER

TMP411BQDGKRQ1 Frequently Asked Questions (FAQs)

  • The typical power consumption of the TMP411BQDGKRQ1 is around 10 μA, making it suitable for battery-powered applications.
  • The TMP411BQDGKRQ1 has an accuracy of ±1°C over the temperature range of -20°C to 100°C, and ±2°C over the extended range of -40°C to 125°C.
  • The response time of the TMP411BQDGKRQ1 is around 30 ms, making it suitable for applications that require fast temperature measurements.
  • Yes, the TMP411BQDGKRQ1 can be used in high-temperature applications up to 125°C, but it's recommended to use a thermocouple or other high-temperature sensor for applications above 100°C.
  • The TMP411BQDGKRQ1 does not require calibration, as it is a digital temperature sensor with internal calibration. However, it's recommended to perform a system-level calibration to ensure accuracy in the specific application.
