TMP411EDGKT - Texas Instruments

Description: Remote and Local Temperature Sensor with N-Factor and Series-R Correction in MSOP-8

Download TMP411EDGKT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

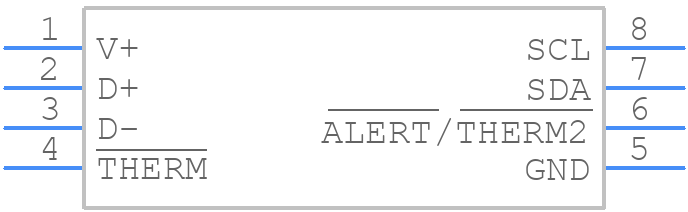

TMP411EDGKT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP411EDGKT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TMP411EDGKT - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TMP411EDGKT Details

  • Manufacturer Part Number:

    TMP411EDGKT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-12-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.03 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Termination Type:

    SOLDER

TMP411EDGKT Frequently Asked Questions (FAQs)

  • The TMP411EDGKT can operate from -40°C to 125°C, but the accuracy of the temperature measurement is specified from -20°C to 100°C.
  • The TMP411EDGKT does not require calibration. It is a digital temperature sensor with an internal calibration, and the temperature data is provided in a digital format.
  • The TMP411EDGKT has a resolution of 0.0625°C (1/16°C) for temperatures between -20°C and 100°C.
  • Yes, the TMP411EDGKT has a high level of noise immunity due to its digital output and internal filtering. However, it's still recommended to follow proper PCB design and layout practices to minimize noise coupling.
  • The TMP411EDGKT has a digital output that can be connected to a microcontroller using a standard I2C or SMBus interface. The device address can be set using the ADDR pin.
