TMP422AIDCNR - Texas Instruments

Description: Dual Remote and Local Temperature Sensor with N-Factor and Series-R Correction in WCSP

Download TMP422AIDCNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

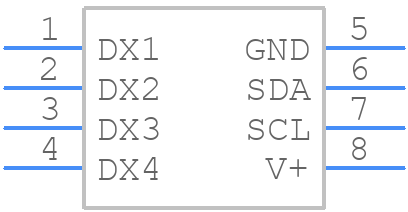

TMP422AIDCNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP422AIDCNR - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom
3D Models
TMP422AIDCNR - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom

TMP422AIDCNR Details

  • Manufacturer Part Number:

    TMP422AIDCNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.175 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.038 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP422AIDCNR Frequently Asked Questions (FAQs)

  • The TMP422AIDCNR can operate from -40°C to 125°C, but the accuracy specifications are only guaranteed from -20°C to 100°C.
  • The TMP422AIDCNR does not require calibration. It is a digital temperature sensor that provides a calibrated digital output. However, you may need to perform a one-time initialization to set the device's address and other configuration settings.
  • The typical current consumption of the TMP422AIDCNR is around 10 μA, but it can be as low as 2 μA in shutdown mode.
  • Yes, the TMP422AIDCNR has built-in noise filtering and is designed to operate in noisy environments. However, it's still recommended to follow proper PCB design and layout practices to minimize noise coupling.
  • The TMP422AIDCNR communicates over an I2C interface. You can interface it with a microcontroller by connecting the SCL and SDA pins to the microcontroller's I2C pins and using an I2C library or driver to communicate with the device.
