TMP423AIDCNRG4 - Texas Instruments

Description: Board Mount Temperature Sensors +/-1C Remote & Local Temp SENSOR

Download TMP423AIDCNRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

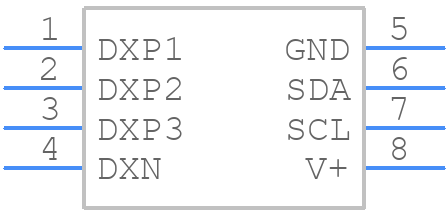

TMP423AIDCNRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP423AIDCNRG4 - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom
3D Models
TMP423AIDCNRG4 - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom

TMP423AIDCNRG4 Details

  • Manufacturer Part Number:

    TMP423AIDCNRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOT-23, 8 PIN

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.175 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.038 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

TMP423AIDCNRG4 Frequently Asked Questions (FAQs)

  • The typical power consumption of the TMP423AIDCNRG4 is 10 μA (microamperes) when operating in the normal mode, and 1 μA in shutdown mode.
  • The TMP423AIDCNRG4 has an accuracy of ±1°C (±1.8°F) over the temperature range of -20°C to 100°C (-4°F to 212°F).
  • The response time of the TMP423AIDCNRG4 is typically 30 ms (milliseconds) for a 63.2% change in temperature.
  • Yes, the TMP423AIDCNRG4 can operate in high-temperature environments up to 150°C (302°F) for short periods of time, but it is recommended to operate it within the specified operating temperature range of -40°C to 125°C (-40°F to 257°F) for optimal performance and reliability.
  • Yes, the TMP423AIDCNRG4 is compatible with both 3.3V and 5V systems, and it can operate from a single supply voltage of 2.7V to 5.5V.
