TMP512AID - Texas Instruments

Description: Thermal/Power Management with Dual Remote and Local Temperature Sensor and Current Shunt Monitor

Download TMP512AID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

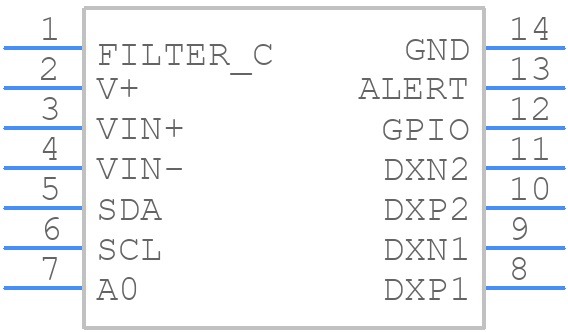

Symbol
TMP512AID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP512AID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
TMP512AID - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

TMP512AID Details

  • Manufacturer Part Number:

    TMP512AID

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.4 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TMP512AID Frequently Asked Questions (FAQs)

  • The maximum power consumption of the TMP512AID is 1.5mA at 3.3V supply voltage, according to the datasheet. However, in practice, the power consumption can be higher depending on the specific application and operating conditions.
  • The TMP512AID has an accuracy of ±1°C over the temperature range of -20°C to 105°C, and ±2°C over the extended temperature range of -40°C to 125°C. However, this accuracy can be affected by various factors such as thermal gradients, self-heating, and noise.
  • Yes, the TMP512AID is designed to operate in harsh environments and can withstand vibrations up to 10g and shocks up to 100g. However, it's essential to ensure proper mounting and thermal coupling to maintain accuracy and reliability.
  • The TMP512AID does not require calibration, as it is a digital temperature sensor with internal calibration. However, it's recommended to perform a one-time calibration during manufacturing or production to ensure optimal performance and accuracy.
  • The TMP512AID is designed to operate in environments with relative humidity up to 85%. However, it's essential to ensure proper sealing and protection to prevent moisture ingress and maintain reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP512AID Overview

Use the download button to access the TMP512AID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP51, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
