TMP512AIRSAT - Texas Instruments

Description: Board Mount Temperature Sensors All-In-One Thermal & Pwr Monitor Sol

Download TMP512AIRSAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

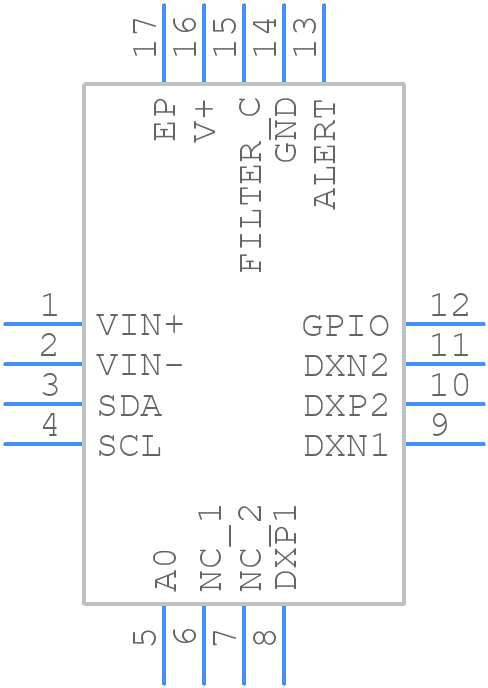

TMP512AIRSAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP512AIRSAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSA(S-PVQFN-N16)_021
click to zoom
3D Models
TMP512AIRSAT - Texas Instruments - 3D model - Quad Flat No-Lead - RSA(S-PVQFN-N16)_021
click to zoom

TMP512AIRSAT Details

  • Manufacturer Part Number:

    TMP512AIRSAT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.4 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TMP512AIRSAT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane on the bottom layer, and thermal vias connecting the device to the ground plane to ensure good heat dissipation.
  • The TMP512AIRSAT does not require calibration. It is a digital temperature sensor with an internal calibration that provides accurate temperature readings over the entire operating range.
  • The maximum cable length for the I2C interface depends on the system design and the capacitance of the bus. As a general rule, Texas Instruments recommends keeping the cable length as short as possible (less than 10 inches) to ensure reliable communication.
  • Yes, the TMP512AIRSAT is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • The TMP512AIRSAT has an internal POR and BOR circuitry that resets the device during power-up and brown-out conditions. The device will automatically recover once the power supply returns to a stable state.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP512AIRSAT Overview

Use the download button to access the TMP512AIRSAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP51, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
