TMP513AIRSAR - Texas Instruments

Description: Thermal/Power Management with Triple Remote and Local Temperature Sensor and Current Shunt Monitor

Download TMP513AIRSAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

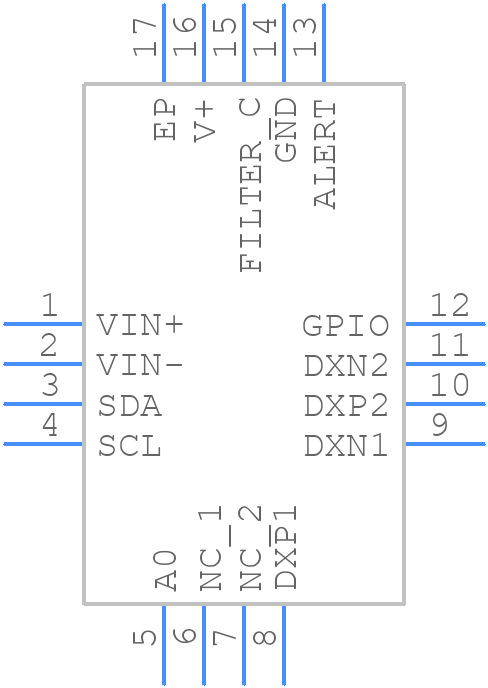

TMP513AIRSAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP513AIRSAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSA (S-PVQFN-N16)
click to zoom
3D Models
TMP513AIRSAR - Texas Instruments - 3D model - Quad Flat No-Lead - RSA (S-PVQFN-N16)
click to zoom

TMP513AIRSAR Details

  • Manufacturer Part Number:

    TMP513AIRSAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.4 mA

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TMP513AIRSAR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and direct to the heat sink or thermal pad.
  • The TMP513AIRSAR has a built-in calibration mechanism. Use the CAL_MODE pin to select the calibration mode, and then use the CAL_DATA registers to read the calibration data. Refer to the datasheet for the calibration procedure.
  • The maximum current draw of the TMP513AIRSAR is 1.5mA (typical) when operating at 3.3V. To minimize power consumption, use the power-down mode (PD pin) when the device is not in use, and consider using a lower supply voltage if possible.
  • The TMP513AIRSAR has a built-in 50Hz/60Hz rejection filter, but additional filtering may be required depending on the application. Use a low-pass filter or a digital filter to remove high-frequency noise and ensure accurate temperature readings.
  • The TMP513AIRSAR is specified to operate from -40°C to 125°C, but the accuracy of the temperature sensor may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP513AIRSAR Overview

Use the download button to access the TMP513AIRSAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP51, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
