TMP75BQDQ1 - Texas Instruments

Description: Temp Sensor Digital Serial (2-Wire, I2C) Automotive 8-Pin SOIC Tube

Download TMP75BQDQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

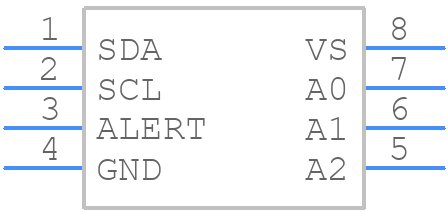

TMP75BQDQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TMP75BQDQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008*.6A
click to zoom
3D Models
TMP75BQDQ1 - Texas Instruments - 3D model - Small Outline Packages - D0008*.6A
click to zoom

TMP75BQDQ1 Details

  • Manufacturer Part Number:

    TMP75BQDQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.089 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

TMP75BQDQ1 Frequently Asked Questions (FAQs)

  • The typical power consumption of the TMP75BQDQ1 is around 10 μA, making it suitable for battery-powered applications.
  • The TMP75BQDQ1 has an accuracy of ±1°C over the temperature range of -20°C to 100°C, and ±2°C over the extended range of -40°C to 125°C.
  • The response time of the TMP75BQDQ1 is around 10 seconds, which is relatively fast compared to other temperature sensors.
  • While the TMP75BQDQ1 can operate up to 125°C, it's not recommended for high-temperature applications above 100°C due to potential accuracy and reliability issues.
  • The TMP75BQDQ1 does not require calibration, as it is factory-calibrated and has a high degree of accuracy. However, if you need to perform calibration, you can use the built-in calibration registers to adjust the temperature reading.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMP75BQDQ1 Overview

Use the download button to access the TMP75BQDQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMP75, or try a keyword search, such as Temperature Sensors
