TMP86C820F - Toshiba

TMP86C820F Details

• Manufacturer Part Number:

  TMP86C820F

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

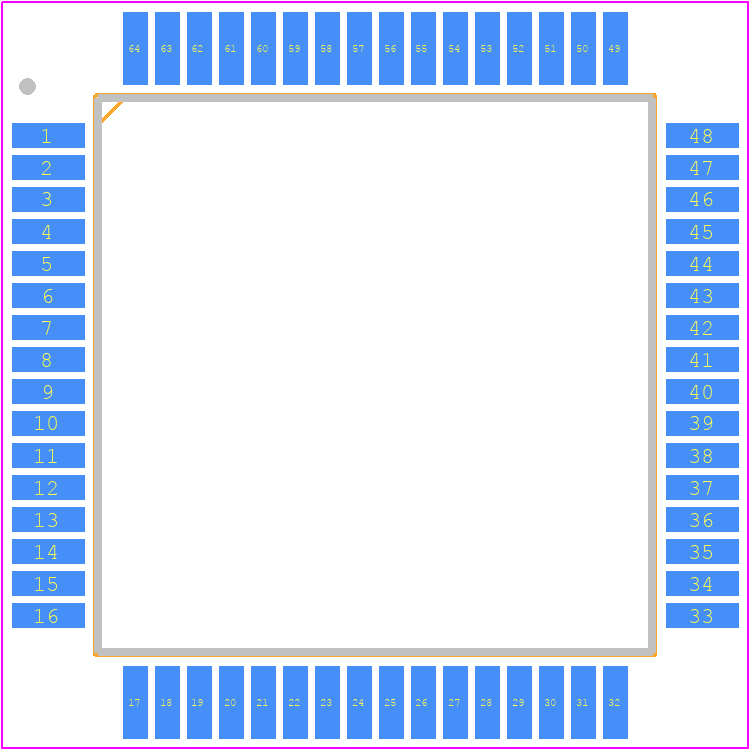

  14 X 14 MM, 0.80 MM PITCH, PLASTIC, QFP-64

• Pin Count:

  64

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 1.8 V MINIMUM SUPPLY @ 4.2 MHZ

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  TLCS-870/C

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  S-PQFP-G64

• JESD-609 Code:

  e0

• Number of I/O Lines:

  39

• Number of Terminals:

  64

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP64,.66SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (bytes):

  256

• ROM (words):

  8192

• ROM Programmability:

  MROM

• Speed:

  16 MHz

• Supply Current-Max:

  9 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
