TMP86PM74AFG - Toshiba

TMP86PM74AFG Details

• Manufacturer Part Number:

  TMP86PM74AFG

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

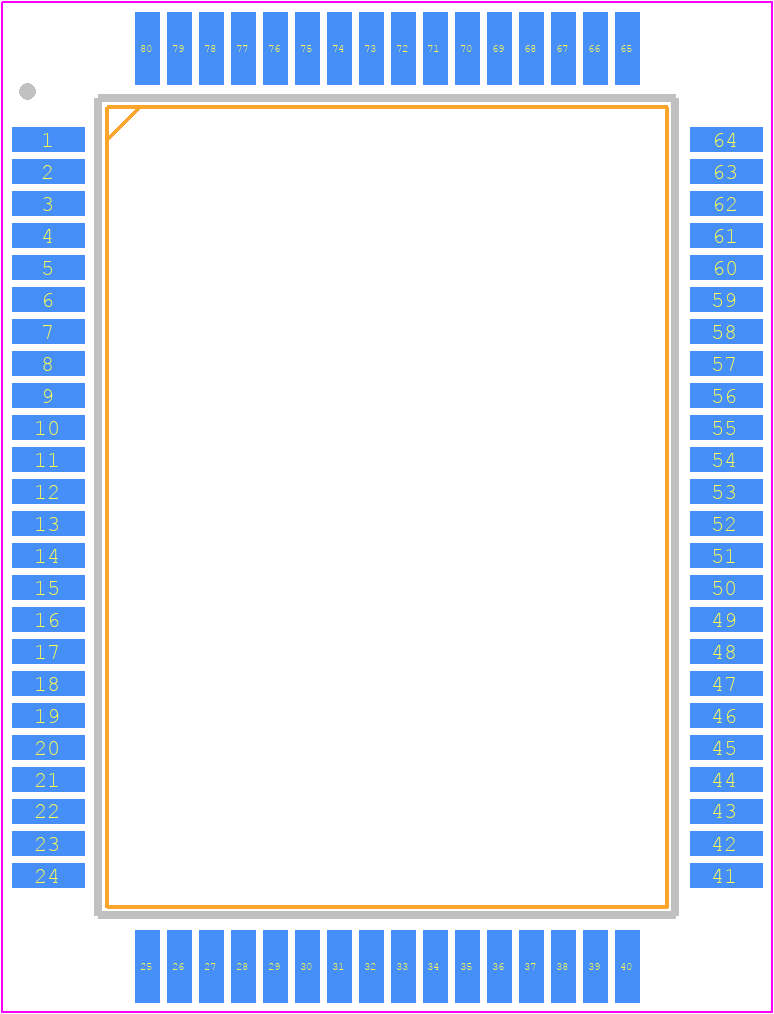

• Part Package Code:

  QFP

• Package Description:

  14 X 20 MM, 0.80 MM PITCH, PLASTIC, QFP-80

• Pin Count:

  80

• HTS Code:

  8542.31.00.15

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  0.4

• Has ADC:

  YES

• Additional Feature:

  OPERATES AT 2.7V MINIMUM SUPPLY @ 8 MHZ

• Bit Size:

  8

• Boundary Scan:

  YES

• CPU Family:

  TLCS-870/C

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PQFP-G80

• Length:

  20 mm

• Number of I/O Lines:

  70

• Number of Terminals:

  80

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -30 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.7X.9,32

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2048

• ROM (words):

  32768

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  3.05 mm

• Speed:

  16 MHz

• Supply Current-Max:

  19 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
