Part Image

TMPM3U6FWDFG - Toshiba

Description: High-performance microcontrollers containing a multi-purpose timer for controlling the power devices used for home electronics, and realizing 5V single supply operation to achieve control over Induction Heating (IH) appliances and motors , 4.0V to 5.5V , 1MHz to 40MHz , -40C to 85C

Download TMPM3U6FWDFG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMPM3U6FWDFG - Toshiba - PCB symbol
click to zoom
PCB Footprints

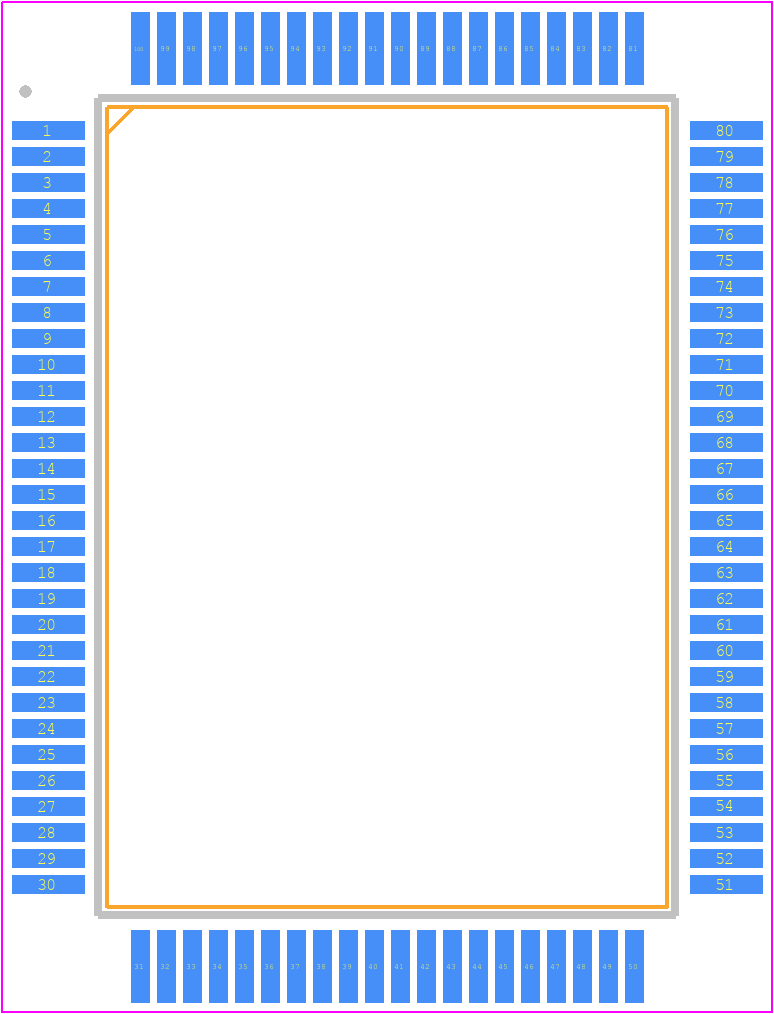

TMPM3U6FWDFG - Toshiba PCB footprint - Quad Flat Packages - Quad Flat Packages - QFP100-P-1420-0.65Q
click to zoom
3D Models
TMPM3U6FWDFG - Toshiba - 3D model - Quad Flat Packages - QFP100-P-1420-0.65Q
click to zoom

TMPM3U6FWDFG Details

  • Manufacturer Part Number:

    TMPM3U6FWDFG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Toshiba America Electronic Components

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TMPM3U6FWDFG Overview

Use the download button to access the TMPM3U6FWDFG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMPM3, or try a keyword search, such as Microcontrollers
