TMS28F400AEB80CDBJL - Texas Instruments

TMS28F400AEB80CDBJL Details

• Manufacturer Part Number:

  TMS28F400AEB80CDBJL

• Part Life Cycle Code:

  Obsolete

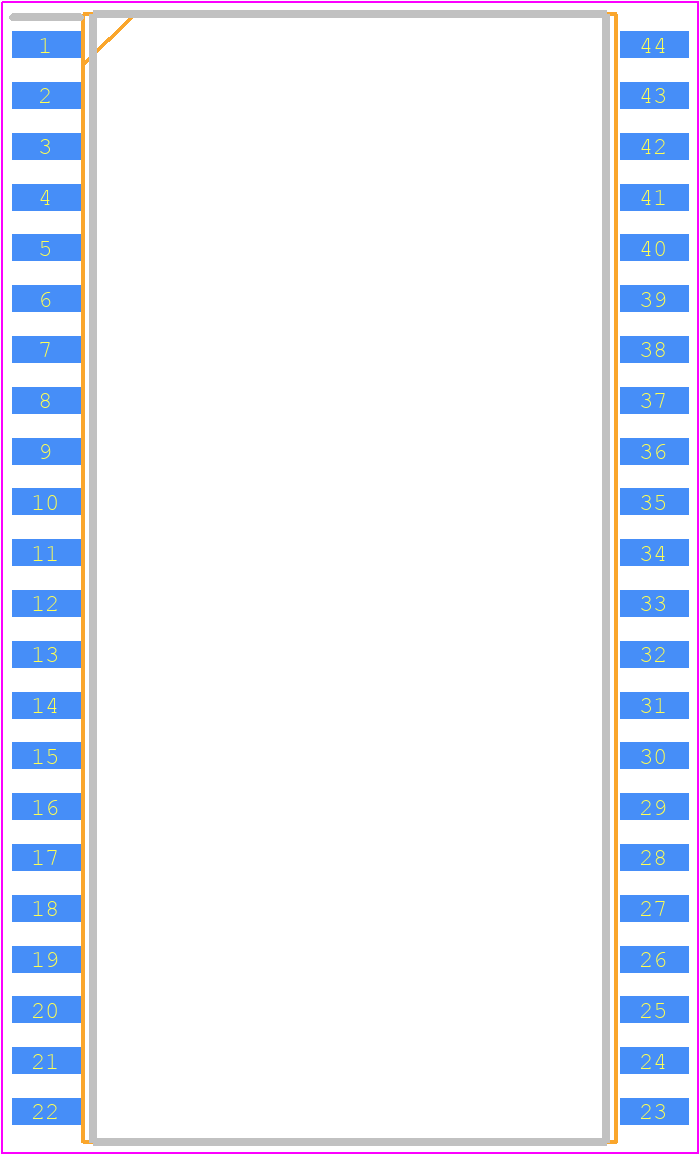

• Part Package Code:

  SOIC

• Package Description:

  PLASTIC, SOP-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Access Time-Max:

  150 ns

• Additional Feature:

  CAN BE CONFG AS 256K X 16; BOTTOM BOOT BLOCK

• Alternate Memory Width:

  8

• Boot Block:

  BOTTOM

• Command User Interface:

  YES

• Data Polling:

  NO

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G44

• Length:

  28.2 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Sectors/Size:

  1,2,1,3

• Number of Terminals:

  44

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  512KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP44,.63

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.63 mm

• Sector Size:

  16K,8K,96K,128K

• Standby Current-Max:

  0.000008 A

• Supply Current-Max:

  0.065 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Toggle Bit:

  NO

• Type:

  NOR TYPE

• Width:

  13.3 mm
