TMS320C32PCM50 - Texas Instruments

TMS320C32PCM50 Details

• Manufacturer Part Number:

  TMS320C32PCM50

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

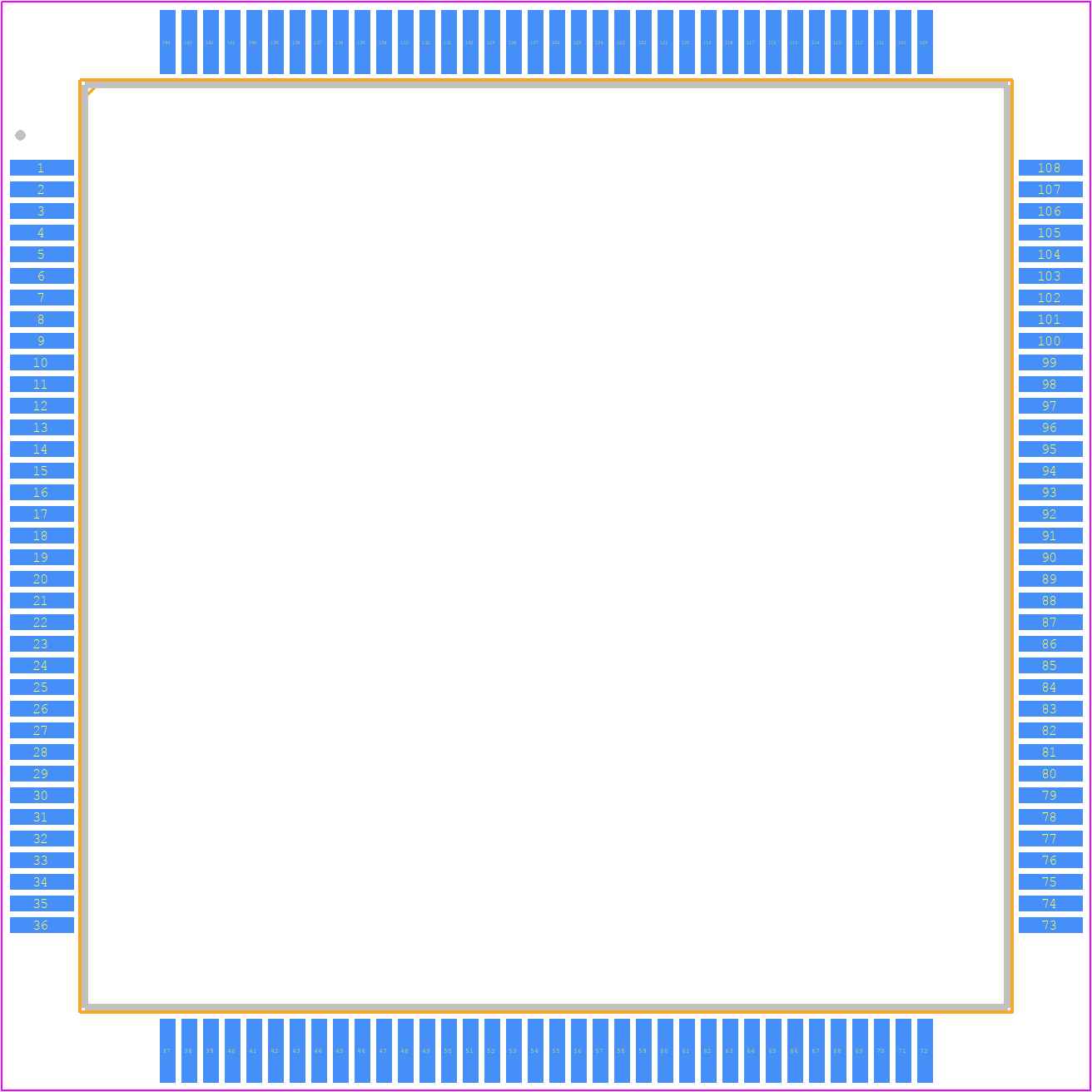

• Part Package Code:

  QFP

• Package Description:

  ROHS COMPLIANT, PLASTIC , QFP-144

• Pin Count:

  144

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  24

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e4

• Length:

  28 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  4

• Number of DMA Channels:

  2

• Number of External Interrupts:

  4

• Number of Serial I/Os:

  1

• Number of Terminals:

  144

• Number of Timers:

  2

• On Chip Data RAM Width:

  32

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP144,1.2SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  245

• Qualification Status:

  Not Qualified

• RAM (words):

  512

• Screening Level:

  TS 16949

• Seated Height-Max:

  4.1 mm

• Supply Current-Max:

  425 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
