TMS320C6202GJL250 - Texas Instruments

TMS320C6202GJL250 Details

• Manufacturer Part Number:

  TMS320C6202GJL250

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

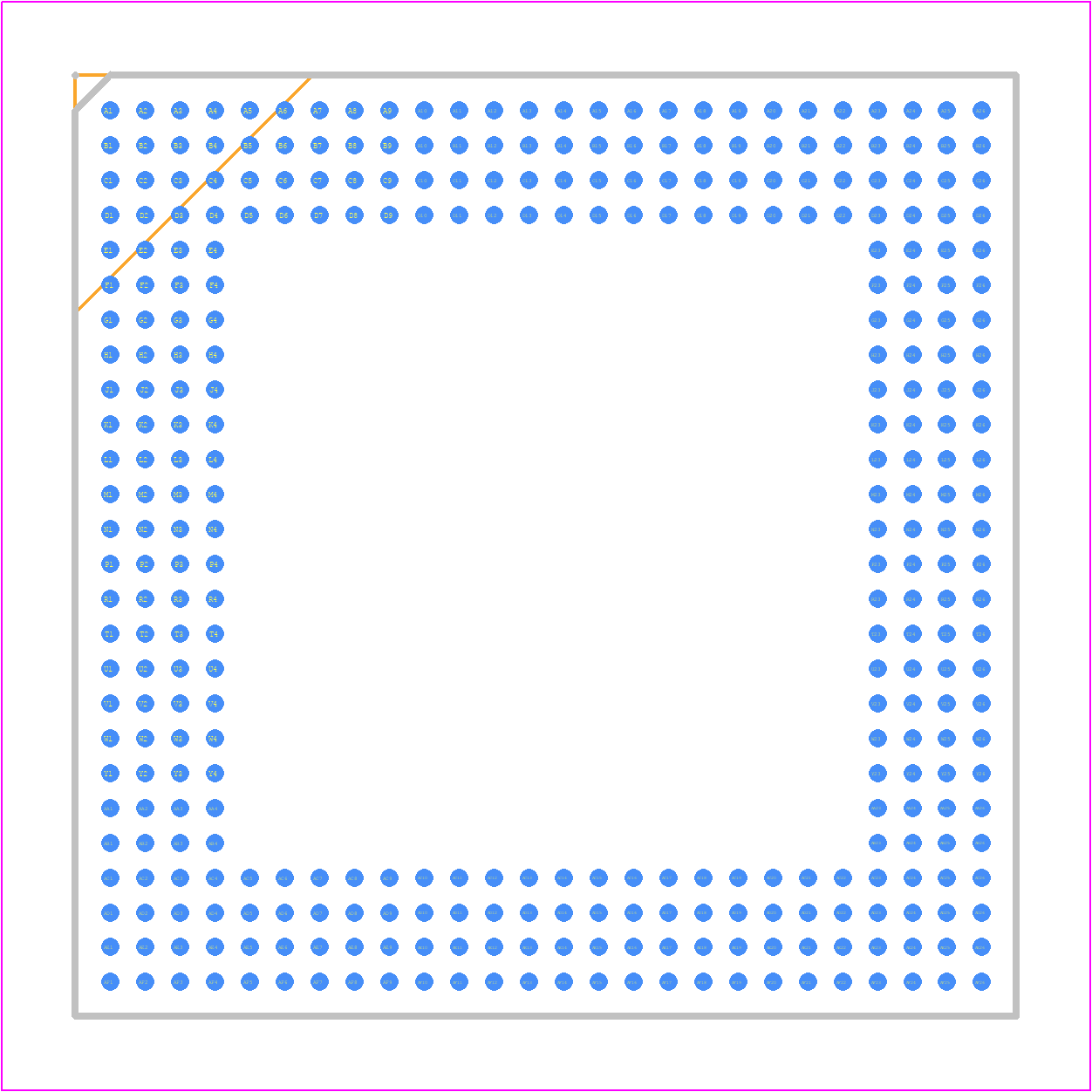

• Part Package Code:

  BGA

• Package Description:

  BGA-352

• Pin Count:

  352

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRES 3.3V SUPPLY

• Address Bus Width:

  22

• Barrel Shifter:

  NO

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  250 MHz

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B352

• JESD-609 Code:

  e0

• Length:

  27 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  4

• Number of Terminals:

  352

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HBGA

• Package Equivalence Code:

  BGA352,26X26,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, HEAT SINK/SLUG

• Peak Reflow Temperature (Cel):

  220

• Qualification Status:

  Not Qualified

• RAM (words):

  32768

• Screening Level:

  TS 16949

• Seated Height-Max:

  3.8 mm

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  27 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
