The recommended clock frequency for the TMS320C6454BCTZA is 1.2 GHz, but it can operate at frequencies up to 1.4 GHz with proper thermal management and power supply design.
To optimize power consumption, use the low-power modes (e.g., IDLE, STANDBY, and HALT) when the processor is not actively processing data. Additionally, use the Dynamic Voltage and Frequency Scaling (DVFS) feature to adjust the voltage and frequency based on the system's workload.
The TMS320C6454BCTZA can address up to 2 GB of external memory using its 32-bit external memory interface (EMIF). However, the actual amount of memory that can be connected depends on the specific memory configuration and the system's requirements.
A boot loader for the TMS320C6454BCTZA can be implemented using the ROM boot loader or by creating a custom boot loader using the device's flash memory. The boot loader should initialize the device's peripherals, configure the memory, and load the application code into memory.
The TMS320C6454BCTZA has a maximum junction temperature (TJ) of 125°C. To ensure reliable operation, the device should be operated within the recommended temperature range, and proper thermal management techniques (e.g., heat sinks, thermal interfaces, and airflow) should be used to dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMS320C6454BCTZA Overview

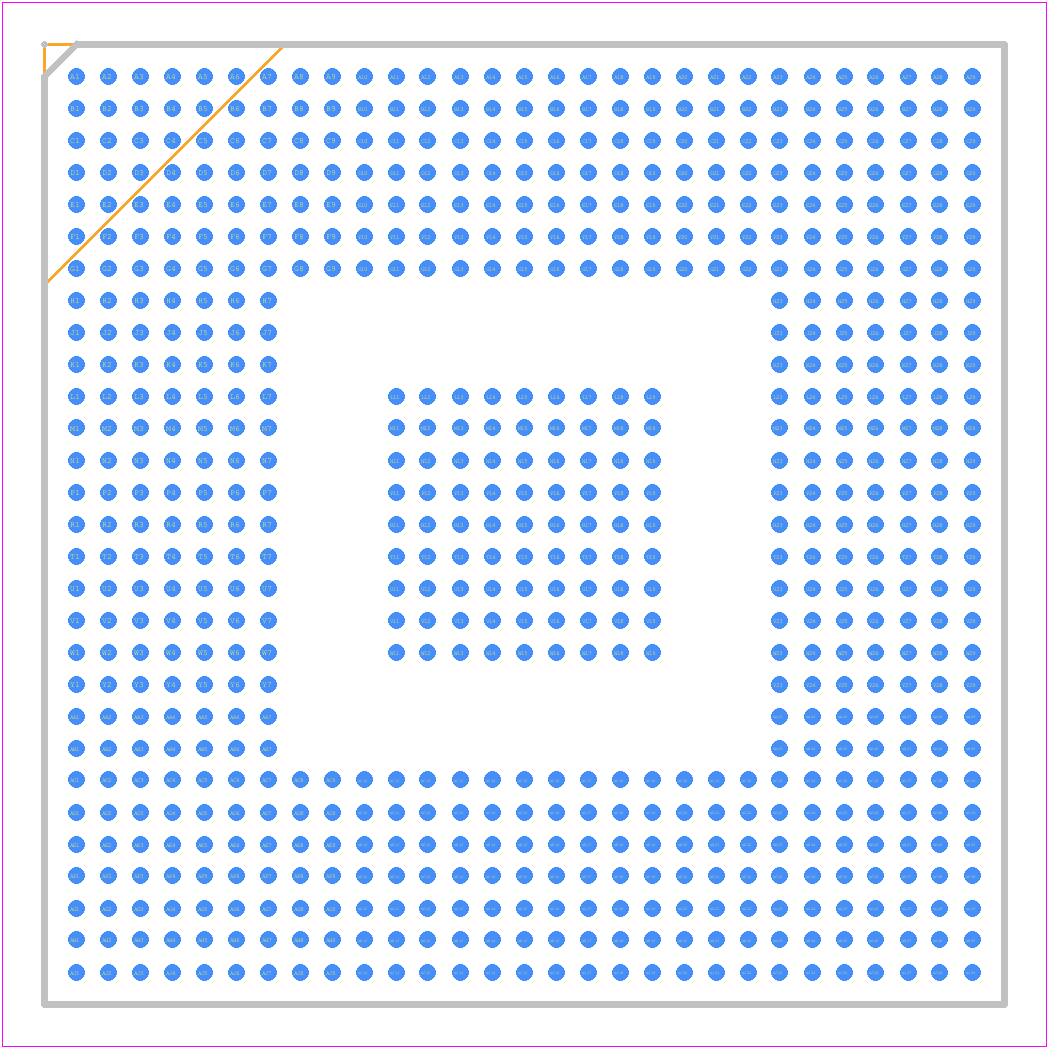

Use the download button to access the TMS320C6454BCTZA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32,
or try a keyword search, such as Digital Signal Processors
