TMS320DM355DZCE135 - Texas Instruments

Description: Digital Media System-on-Chip

Download TMS320DM355DZCE135 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TMS320DM355DZCE135 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

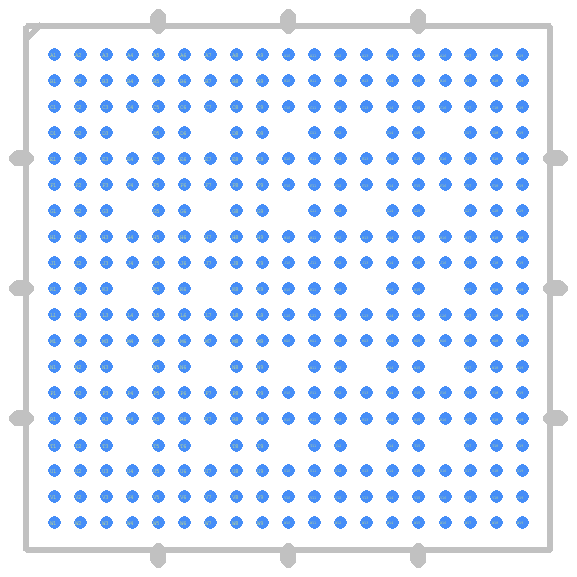

TMS320DM355DZCE135 - Texas Instruments PCB footprint - Other - Other - BGA337C65P19X19_1300X1300X130
click to zoom
3D Models
TMS320DM355DZCE135 - Texas Instruments - 3D model - Other - BGA337C65P19X19_1300X1300X130
click to zoom

TMS320DM355DZCE135 Details

  • Manufacturer Part Number:

    TMS320DM355DZCE135

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    NFBGA-337

  • Pin Count:

    337

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 1.8V AND 3.3V SUPPLY FOR I/O

  • Bit Size:

    32

  • Bus Compatibility:

    I2C; SPI; UART; USB

  • External Data Bus Width:

    32

  • Format:

    FIXED POINT

  • JESD-30 Code:

    S-PBGA-B337

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    337

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA337,19X19,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (words):

    8192

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    1.365 V

  • Supply Voltage-Min:

    1.235 V

  • Supply Voltage-Nom:

    1.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    Digital Media SoC
