The recommended power-up sequence is to apply power to the core voltage (VDD) first, followed by the input/output voltage (VDDIO), and then the clock signal. This ensures proper device operation and prevents latch-up.
To configure the EMIF for optimal performance, ensure that the memory timing parameters (e.g., clock frequency, latency, and burst length) are set according to the memory device specifications. Additionally, use the EMIF configuration registers to optimize the interface for the specific memory type and speed grade.
The maximum operating frequency of the DM6435 is 720 MHz. However, the actual operating frequency may be limited by the specific application, board design, and thermal considerations.
To implement a DDR2 memory interface with the DM6435, use the EMIF to connect to the DDR2 memory devices. Configure the EMIF registers to set the DDR2 memory timing parameters, and ensure that the memory devices are properly terminated and powered.
The TWL interface is used for bootloading and debugging purposes. It allows the DM6435 to load code and data from an external source, such as a host PC, using a two-wire serial interface.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TMS320DM6435EZWT6 Overview

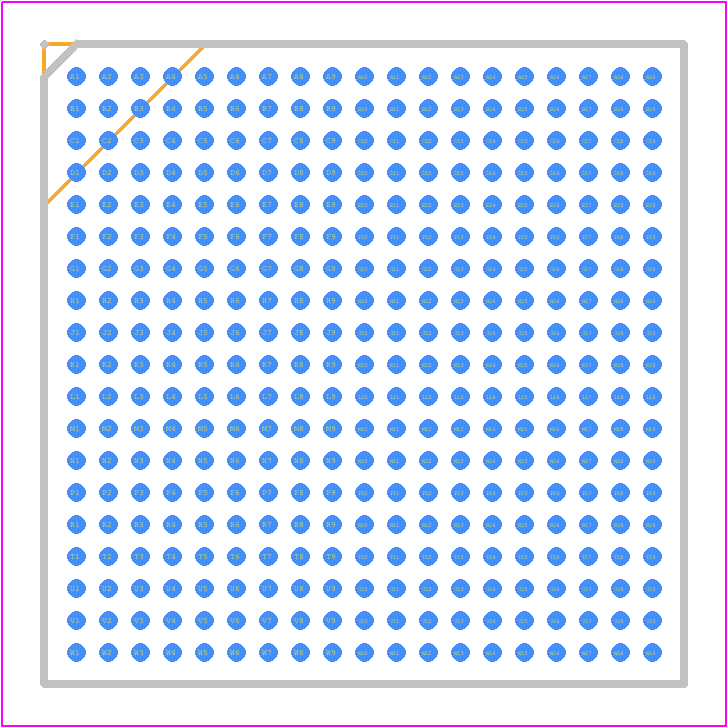

Use the download button to access the TMS320DM6435EZWT6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TMS32,
or try a keyword search, such as Digital Signal Processors
